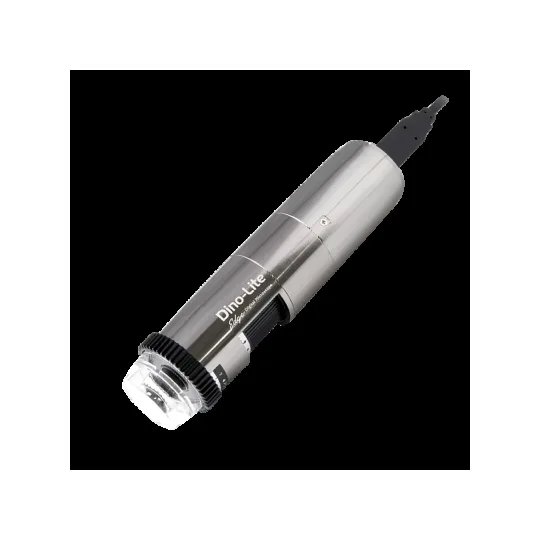

AM8917MT8A EDGE

Wyposażony w oświetlenie koaksjalne, EDOF oraz wiele innych zaawansowanych funkcji, AM8917MT8A to mikroskop o powiększeniu 800x, idealny do obserwacji powierzchni refleksyjnych i uzyskiwania obrazów w pełnym ostrzeniu. AM8917MT8A zawiera funkcje takie jak DPQ, EDR, AMR oraz tryby automatycznego i ręcznego ponownego ogniskowania.

Lighting
Light/ LED type	White LED
Optics
Magnification	700x ~ 900x
Sensor
Resolution	8.0 Megapixel (3840 x 2160)
Maximum frame rate	10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG
Compatibility
Interface	USB 2.0
Operating system	Windows 10/11 macOS 10.14 or later
Supported image formats (Windows)	DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
Supported video formats (Windows)	DinoCapture 2.0: WMV, FLV, SWF
Supported image formats (MacOS)	DinoXcope: PNG, JPEG
Supported video formats (MacOS)	DinoXcope: MOV
Housing
Magnification lock	Yes
Dimensions	133 mm (H) x 32 mm (D)
Weight	Approx. 124 g
Cable length	Approx. 1.8 m
Features
Measurement	Yes
Calibration	Yes
Microtouch sensor	Yes
Information
Package contents	Microscope, carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information	2 years European warranty
Regulatory approval	CE, FCC, ROHS

M	WD	FOV (x)	FOV (y)	DOF
700	5.8	0.87	0.49	0.01
750	5.7	0.81	0.46	0.01
800	5.6	0.76	0.43	0.01
850	5.6	0.71	0.40	0.01
900	5.5	0.68	0.38	0.01
