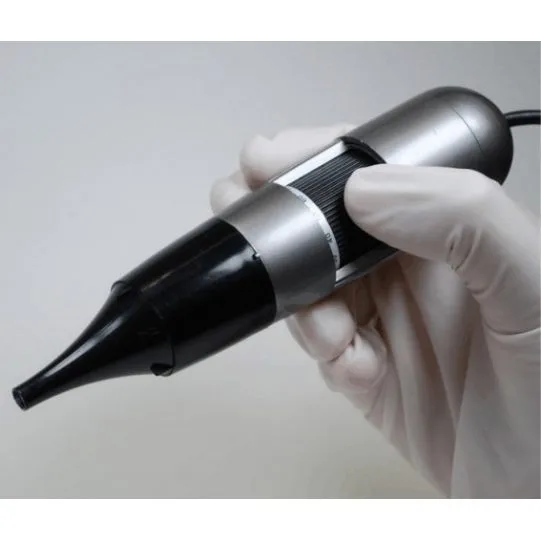

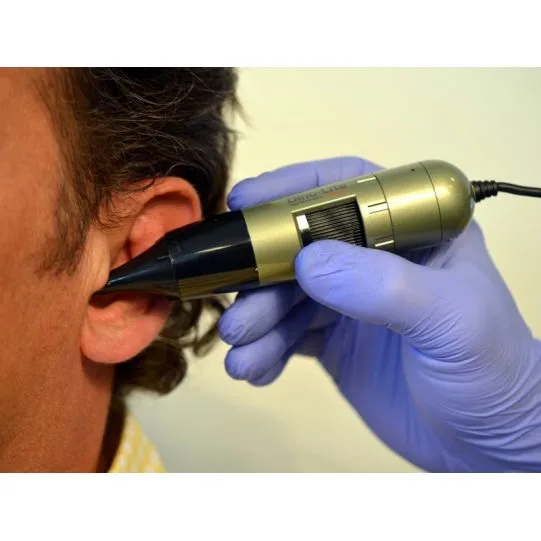

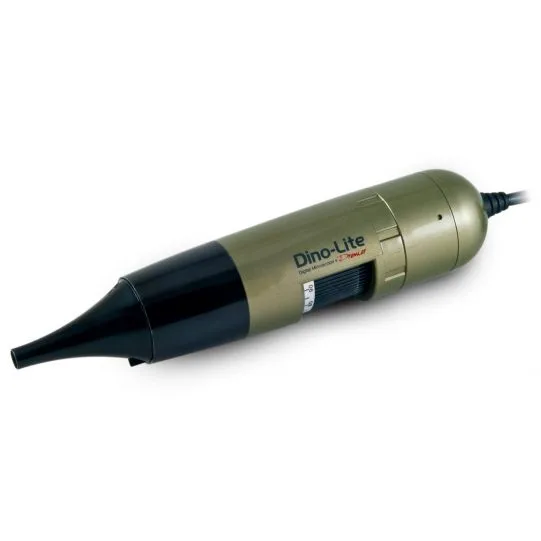

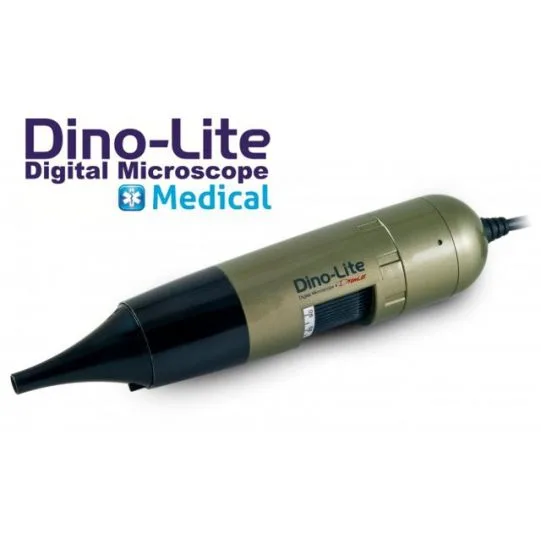

Dino-Lite - MEDL4E EarScope Pro

Dodatkowe informacje

• Details

• Dino-Lite medical range:
  Dino-Lite EarScope
• Article code:
  MEDL4E

• Lighting

• Light/ LED type:
  White
• Number of LEDs:
  6
• LED on/off switchable:
  Yes
• Infrared filter:
  IR cut-filter >650 nm
• Diffuser available:
  No
• Polarizer:
  No

• Optics

• Magnification:
  55-90x
• Lens type:
  Glass with Anti-Reflection coating

• Sensor

• Sensor type:
  CMOS
• Resolution:
  1.3 Megapixel (1280x1024)
• Maximum frame rate:
  30 fps

• Compatibility

• Interface:
  USB 2.0
• Operating system:
  Windows XP, Vista, 7 & 8, MacOS 10.4 and up
• Included software:
  DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows):
  BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows):
  WMV, FLV, SWF
• Supported image formats (MacOS):
  JPEG, PNG
• Supported video formats (MacOS):
  MOV
• Imaging standards:
  DirectShow, UVC

• Housing

• Housing material:
  Composite/plastic housing
• Magnification lock:
  Yes
• Dimensions:
  10.5 cm (L) x 3.2 cm (D)
• Weight:
  95 g
• Cable length:
  1.8 m

• Features

• Measurement:
  Yes
• Calibration:
  Yes
• Microtouch sensor:
  Yes

• Information

• Package contents:

  Microscope, Carry pouch, 10x 3 mm specula, 10x 4 mm specula, 10x 5 mm specula, Software CD, Calibration target, User manual

• Regulatory approval:
  Medical Device Class 1 – According to Directive 93/42/EEC modified 2007/47/EC
