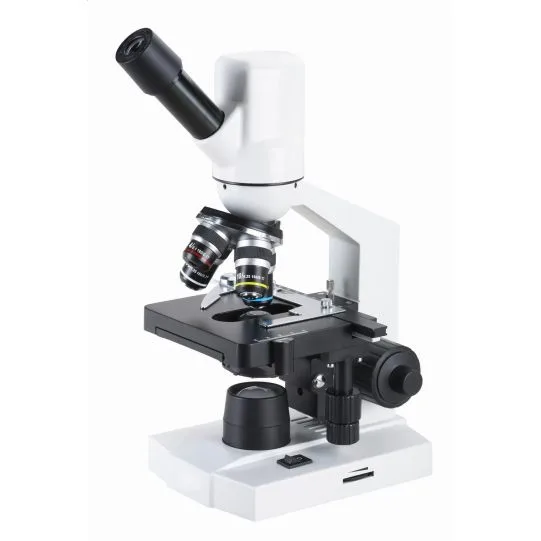

Optek Nowel - DN-10
Opis
Pełny opis
|
· |
Digital microscope of integration, 1.3 M pixel digital camera system, clear image and real color reproduction. |
|
· |
With professional image software for digital microscope, support multilingual operating system, including preview, taking photos or video, image processing and image measurement. |
|
· |
Friendly user interface, easy operation, the database of colour schemes also can be backuped. |
|
· |
Widely used in biology, histology, bacteriology etc. |
|
Specification： |
|
DN-10A |
DN-10B |
||||
|
Viewing Head |
Microscope |
Monocular head, Inclined at 45°, |
● |
||
|
Binocular head, Inclined at 45°, |
● |
||||
|
Camera |
Valid Pixel |
1280×1024(1.3M Pixel) |
● |
● |
|
|
Output Mode |
USB2.0 |
● |
● |
||
|
Operation System |
WINDOWS 2000/XP/ |
● |
● |
||
|
Software |
Scopelmage 9.0 |
● |
● |
||
|
Scopelmage Advanced |
● |
● |
|||
|
Rang of |
> =100% |
○ |
○ |
||
|
Objective |
Achromatic Objective (DIN) 4×、10×、40×、100× |
○ |
○ |
||
|
Eyepiece |
WF10×/ 18 |
● |
● |
||
|
Stage |
Double Layers Mechanical Stage 115×125mm/70×20mm |
● |
● |
||
|
Condenser |
Abbe NA1.25 Condenser with iris diaphragm |
● |
● |
||
|
Focusing |
Coaxial coarse and fine adjustment |
● |
● |
||
|
Illumination |
1W Powerful LED Illumination, brightness adjustable |
● |
● |
||
|
Note:● Standard Outfit，○ Optional |
