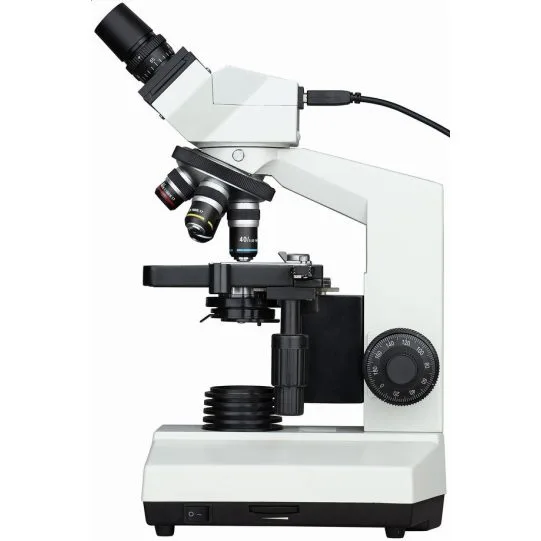

Optek Nowel - DN-107T
Opis
Pełny opis
|
· |
Integrated digital microscope, resolution 1280×1024（1.3 pixel） |
|
· |
USB2.0 output, plug and unplug freely |
|
· |
Support WINDOWS 2000/XP/VISTA system,Equipped with powerful applied software |
|
· |
Economic features, widely used in academic demonstration and health system |
|
Specification： |
|
|
|
DN-107T |
||
|
Viewing Head |
Sliding Binocular Head, Inclined at 45°, Interpupilary 55-75mm |
● |
||
|
Camera |
Valid Pixel |
1280×1024（1.3M Pixel） |
● |
|
|
Output Mode |
USB2.0 |
● |
||
|
Opration System |
WINDOWS 2000/XP/VISTA |
● |
||
|
Software |
ScopeImaage Plus |
● |
||
|
Range of Viewing Field |
>75% |
● |
||
|
Eyepiece |
WF10×/ 18 |
● |
||
|
P16×/11 |
○ |
|||
|
Nosepiece |
Toward Quadruple Nosepiece |
● |
||
|
Objective |
Achromatic Objective 4×、10×、40×、100× |
● |
||
|
Stage |
Double Layers Mechanical Stage 140×140mm/75×50mm |
● |
||
|
Condenser |
Abbe NA1.20 with Iris Diaphragm & Fliter |
● |
||
|
Focusing |
Coaxial Coarse & Fine Adjustment System, Range 28mm, Fine Division 0.002mm |
● |
||
|
Illumination |
Halogen Lamp 6V/20W，Brightness Adjustable |
● |
||
|
Phase Contrast Kit |
○ |
|||
|
Dark Field Attachment |
○ |
|||
|
Polarization Attachment |
○ |
|||
|
Note: ● Standard Outfit, ○ Optional |
