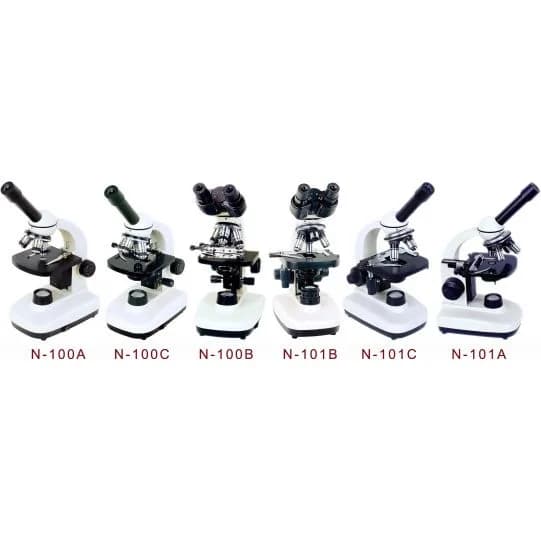

Optek Nowel N-100/N-101 Series

Name: Optek Nowel N-100/N-101 Series
SKU: LEGACY-119

LEGACY-119

Cena na zapytanieWycenimy tę pozycję pisemnie.

Na zamówienie — 14 dni

Zapytaj o ofertę

Opis

Pełny opis

With the feature of modern C frame shape, comfortable operation and reliable structure, it can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.

Specification：

		100A	100C	100B	101A	101C	101B
Viewing Head	Monocular Head inclined at 45°	●	●		●	●
	Binocular Head inclined at 30°			●			●
	Teaching Head
Eyepiece	Wide Field Eyepiece WF10×/18	●	●	●	●	●	●
Eyepiece	Eyepiece P16×/11
Objective	185 Objective 4×	●	●	●
	185 Objective 10×	●	●	●
	185 Objective 40×	●	●	●
	185 Objective 100×		●	●
	Objective（DIN）4×				●	●	●
	Objective（DIN）10×				●	●	●
	Objective（DIN）40×				●	●	●
	Objective（DIN）100×				●	●	●
Nosepiece	Triple Nosepiece	●
Nosepiece	Quadruple Nosepiece		●	●	●	●	●
Stage	Plain 125 ×120mm	●
	Attachable Mechanical Stage 120X120mm/ 60×30mm		●	●	●
	Double Layer Mechanical Stage 120X120mm/ 60×30mm					●	●
Condenser	Single Lens with Iris	●
	Abbe NA1.25 with Iris, Spiral up & down		●	●	●
	Abbe NA 1.25 with Iris, Rack & Pinion Adjustment					●	●
Illumination	Fluorescent Lamp 220V/ 110V/ 7W	●	●	●
	Halogen Lamp 6V/ 15W, Brightness Adjustable				●	●	●
	Mirror	○	○	○	○	○	○
Filter	Blue Filter		●	●	●	●	●
Filter	Green Filter		●	●	●	●	●
