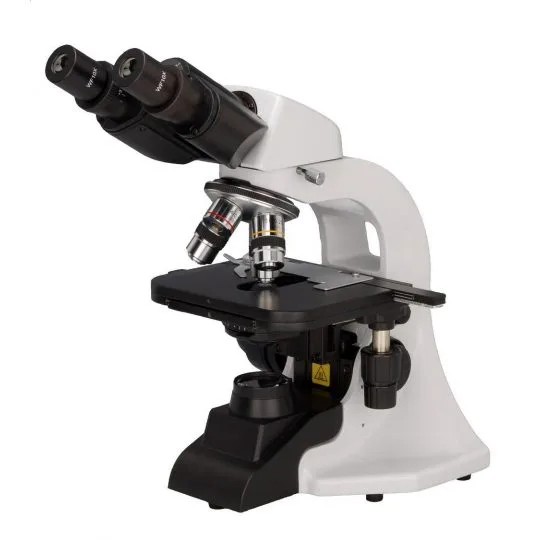

Optek Nowel N-110M

Specification:

N-110M

Viewing Head

Siedentopf binocular viewing head, inclined at 30°,360° rotatable

●

Siedentopf trinocular viewing head, inclined at 30°,360° rotatable

○

Eyepiece

WF10×/18

●

WF15×

○

Objective

Achromatic objective 4×,10×,40×,100×

●

Plan achromatic objective 4×,10×,40×,100×

○

Infinite plan achromatic objective 4×,10×,40×,100×

○

Nosepiece

Quadruple nosepiece

●

Focusing

Coaxial coarse & fine adjustment, fine division 0.002mm

●

Stage

Double layers mechanical  stage, cross travel 78×54mm, using low-positioned X/ Y coaxial control knob

●

Condenser

Abbe condenser NA1.25 with aperture diaphragm

●

Illumination

3W LED

●

12V/ 20W Halogen lamp, brightness adjustable

○

Kohler illumination

○

Optional

Photo attachment, video attachment, dark field condensor

○
