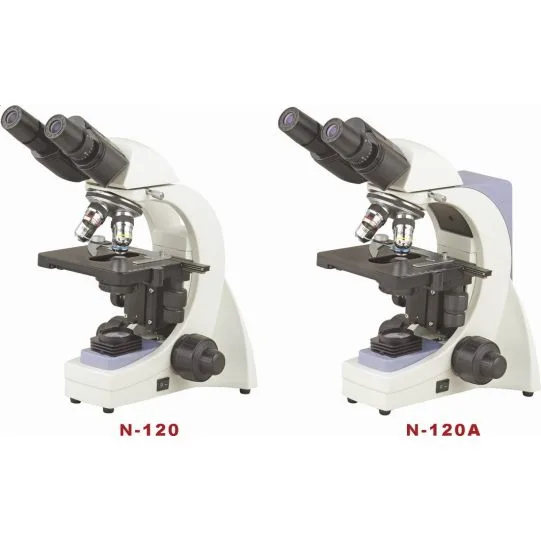

Optek Nowel N-120/N-120 A

·

Sharp Image Display with Excellent Optical Function.

·

Small Space Occupancy with Integral Stand Design, Low Environment Requirement with Anti-mould Technology.

·

Comfortable Operation with Ergonomic Design.

Features：

Available to observe the specimen from rear of the body（N-120）

Comfortable Operation with Low Position Coarse & Fine Adjustment Knobs

Higher Contrast and Sharper Image with High Quality Objectives

Specification：

Viewing Head

Compensation Free Binocular Head, Inclined at 30°

●

Compensation Free Trinocular Head, Inclined at 30°

○

Eyepiece

Wide Field Eyepiece WF10×/ 18

●

Wide Field Eyepiece WF16×/ 11

Objective

Achromatic Objective 4×、10×、40×、100×

●

Plan Achromatic Objective 4×、10×、40×、100×

○

Nosepiece

Quadruple Nosepiece

●

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

●

Condenser

NA 1.25 Abbe Condenser with Iris Diaphragm and Filter

●

Illumination

Halogen Lamp 6V/ 20W, Brightness Adjustable

●

Photo Attachment

○

Video Adapter

C Mount 1×

○

C Mount 0.5×

○

Filter

Blue Filter

●

Green Filter

●

Dark Field Attachment

Dark Field Condenser (Dry)

○

Dark Field Condenser (Dry)

○

Phase Contrast Kit

Single Phase Contrast Kit

○

Sliding Phase Contrast Kit

○

Turret Phase Contrast kit

○

Polarization Set

Simple Polarization Set

○

Fluorescent Attachment

Epi-fluorescent Attachment

○
