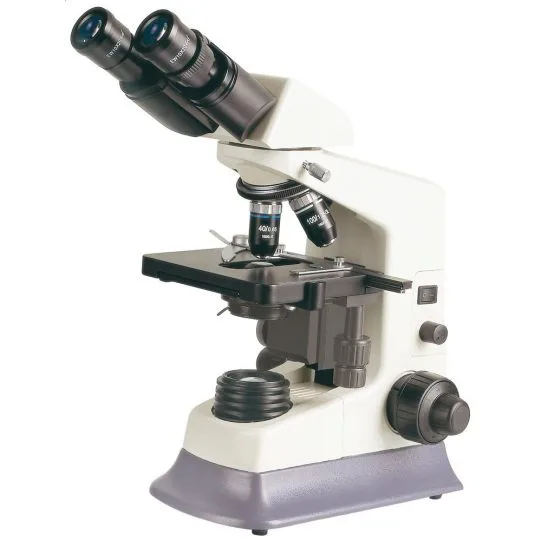

Optek Nowel N-180M

·

Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

·

It is an ideal instrument for biology field, bacteriology field, immunology field, pharmacology field and so on.

Features：

Convenient and Comfortable Observing with High Point and Wide Field Eyepiece EW10×/ 20

Sharp and Bright Image with Semi-plan Objectives

Replacement of bulbs become easier and more secure, just take away the Collector without overturn the microscope

Convenient Handling with Special Design Low Position Coarse & Fine Adjustment Suitable for Different Region Power Supply with 100V-240V Multi-input Rating

Specification：

N-180M

Viewing Head

Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable

●

Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable

○

Eyepiece

Wide Field Eyepiece EW10×/ 20

●

Wide Field Eyepiece WF16×/ 11

○

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

●

Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

○

Nosepiece

Backward Quadruple Nosepiece

●

Quintuple Nosepiece

○

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

●

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

●

Illumination

Halogen Lamp 6V/ 20W, Brightness Adjustable

●

Kohler Illumination

○

Photo Attachment

○

Video Attachment

C Mount 1× & 0.5×

○

Filter

Blue Filter

●

Green Filter

●

Polarization Set

Simple Polarization Set

○

Phase
Contrast Kit

Simple Phase Contrast Kit

○

Sliding Phase Contrast Kit

○

Turret Phase Contrast Kit

○

Dark Field Attachment

Dark Field Condenser (Dry) NA 0.9

○

Dark Field Condenser (Oil) NA 1.25-1.36

○

Epi-fluorescent Attachment

○

Pointer

Green LED Pointer System

○
