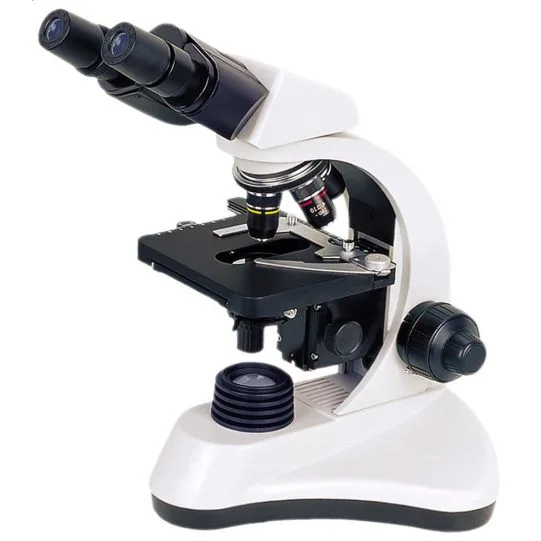

Optek Nowel N-200M

With excellent optical system and reliable structure, it makes the image much sharper, and the operation easier. With wide range of accessories [e.g. dark field, phase contrast, epi-fluorescent] and advances to expand the application scope of the N-200M, the versatility of the microscope provides More Microscopy for you.

Feature：

Big Operating Space with Backward Nosepiece, Sharp Image with High Quality Objectives

Easier Comparing Test with Dual Slides Finger of Mechanical Stage

Comfortable Handling with Precise Focusing System

Specification：

N-200M

Viewing Head

Compensation Free Binocular Head, Inclined at 30°

●

Compensation Free Trinocular Head, Inclined at 30°

○

Monocular Head, Inclined at 30°

○

Eyepiece

Wide Field Eyepiece WF10×/ 18

●

Wide Field Eyepiece WF16×/ 11

○

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

●

Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

○

Nosepiece

Backward Quadruple Nosepiece

●

Quintuple Nosepiece

○

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

●

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

●

Illumination

Halogen Lamp 6V/ 20W, Brightness Adjustable

●

Kohler Illumination

○

Filter

Blue Filter

●

Green Filter

●

Polarization Set

Simple Polarization Set

○

Phase Contrast Kit

Simple Phase Contrast Kit

○

Sliding Phase Contrast Kit

○

Turret Phase Contrast Kit

○

Dark Field Attachment

Dark Field Condenser (Dry) NA 0.9

○

Dark Field Condenser (Oil) NA 1.25-1.36

○

Epi-fluorescent Attachment

○

Pointer

Green LED Pointer System

○

Note: ●Standard Outfit, ○Optional
