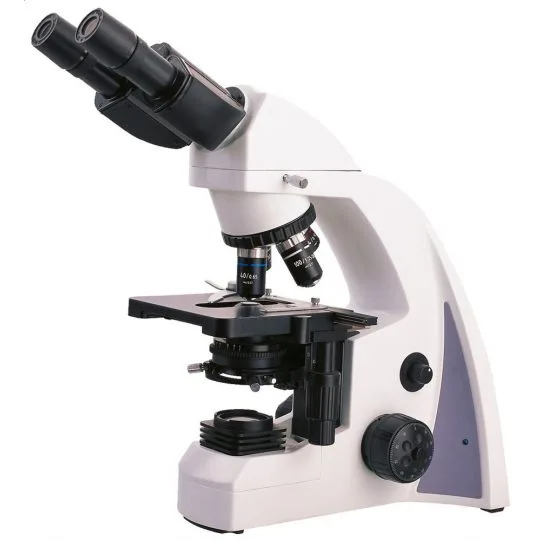

Optek Nowel N-300M

Opis

Pełny opis

·	Excellent image quality with infinitive optical system.
·	Comfortable operating with ergonomic structure.
·	Better illumination with sliding-in centerable condenser, Convenient replacement with phase contrast and dark field condenser.

Features：

	Extra Wide Field Eyepiece EW10X/20 with Diopter Adjustment as Optional
	Comfortable Observation with Eyepoint and interpupillary adjustable
	Sliding-in Centerable Condense Adjustable
	Handle for easy carrying
	Lamp Replacement by Direct Removing Housing

Specification：

			N-300M
Viewing Head	Compensation Free binocular head, 30° inclined, Interpupillary 48-75mm		●
	Compensation Free trinocular head, 30° inclined, Interpupillary 48-75mm		○
Eyepiece	Wide Field Eyepiece WF 10×/18		●
	Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment		○
Objective	Infinitive Semi-plan Achromatic Objectives	4×	●
		10×	●
		40×	●
		100×	●
Nosepiece	Quadruple Nosepiece		●
Stage	Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm		●
Condenser	Sliding-in centerable condenser NA12.5		●
Focusing	Coaxial Coarse & Fine Adjustment, Moving Range 20mm		●
Illumination	6V/ 20W Halogen Lamp, Brightness Adjustable		●
Phase Contrast Kit			○
Dark Field Attachment			○

Note: ● Standard Outfit, ○ Optional
