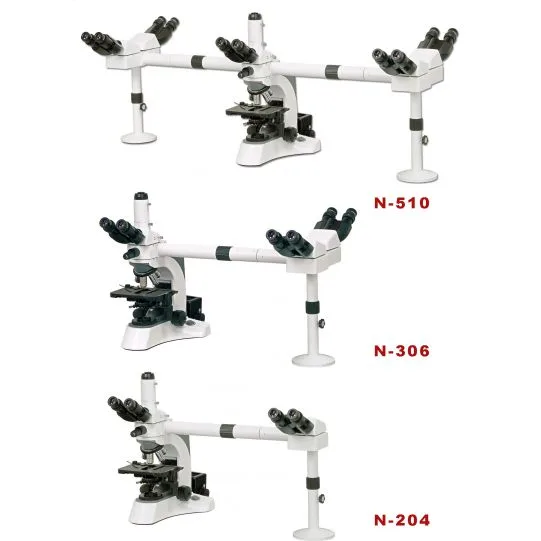

Optek Nowel N-510

·

Multi-viewing Microscope allows people observation at the same time.

·

With the features of Infinite Optical System, Effective Illumination, LED Pointer and images Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.

Specification：

N-510

N-306

N-204

Optical System

Infinite Optical System

●

●

●

Viewing Head

Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm

1PC

1PC

1PC

Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm

4PCS

2PCS

1PC

Eyepiece

Extra Wide Field Eyepiece EW10×/ 20

10PCS

6PCS

4PCS

Nosepiece

Inverse Quintuple Nosepiece

●

●

●

Objective

Infinite Plan Achromatic Objective 4×、10×、40×、100×

●

●

●

Condenser

Swing Condenser N.A.0.9/ 0.25

●

●

●

Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm

●

●

●

Stage

Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm

●

●

●

Kohler Illumination

External Illumination, Halogen Lamp 12V/ 50W

●

●

●

Pointer

Green LED Pointer , Brightness Adjustable

●

●

●

Dual Color Pointer , Brightness Adjustable

○

○

○

Photo Attachment

○

○

○

Video Adapter

C Mount 1×

○

○

○

C Mount 0.5×

○

○

○

Note: ●Standard Outfit, ○Optional
