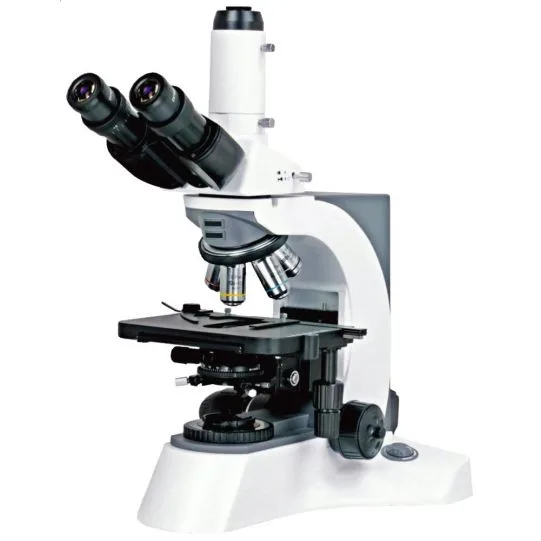

Optek Nowel N-800M

Opis

Pełny opis

·	With Infinite Optical System, Kohler Illumination, Providing Excellent Optical Quality and making Image Perfect.
·	With Low and Forward Position Coaxial Focus System, Focusing Knobs and Brightness Adjustable Knob within reaching Location, Stable Integral Structure, Reasonable Ergonomic Design, Making.
·	Operator Feel More Comfortable and Effective.

Features：

	Comfortably observing with compensation free trinocular head Inclined at 30° Suitable for observer with wide interpupillary range of 48-75mm
	Larger viewing area with extra wide field eyepiece EW10×/ 22 Focus control with diopter adjustable
	Big operating space with backward quintuple nosepiece
	Rectangle double layers mechanical stage 185×142mm, moving range 75×55mm, comfortable operation with low position adjustable knobs
	Perfect image with infinite plan achromatic objective
	Overcoming illumination asymmetry at low magnification observation
	With aspherical condenser and Kohler illumination, providing enough, even and high contrast illumination for various objective observations.
	External illumination, halogen lamp 12V/ 30W, brightness adjustable

Specification：

			N-800M
Viewing Head	Siedentopf Binocular Head		○
	Siedentopf Trinocular Head		●
Eyepiece	Extra Wide Field Eyepiece EW10×/ 22		●
Nosepiece	Backward Quintuple Nosepiece		●
	Backward Sextuple Nosepiece		○
Objective	Infinite Plan Achromatic Objective	4×	●
		10×	●
		20×	○
		40×	●
		100×	●
	Objectives for Dark Field	100×	○
Condenser	Swing-out Condenser NA 0.9/ 0.25		●
Stage	Double Layers Mechanical Stage 185×142/ 75×55		●
Illumination	External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W		●
	50W/ 100W Power Supply		○
Photo Attachment			○
Video Adapter	C Mount 1×		○
	C Mount 0.5×		○
Filter	Blue Filter		●
	Green Filter		●
Multi Viewing Attachments	Multi Viewing Attachments for 5 persons		○
	Multi Viewing Attachments for 3 persons		○
	Multi Viewing Attachments for 2 persons		○
Polarization Attachment			○
Phase Contrast Kit	Turret Phase Contrast Kit		○
Dark Field Attachment			○
Epi-fluorescent Attachment			○
Temperature Controlled Stage			○
Drawing Attachment			○

Note: ●Standard Outfit, ○Optional

Specification：


NDFA-D Dark Field Condenser (Dry)	NDFA-O Dark Field Condenser (Oil)

NPHA Turret Phase Contrast Kit	Polarization Attachment
