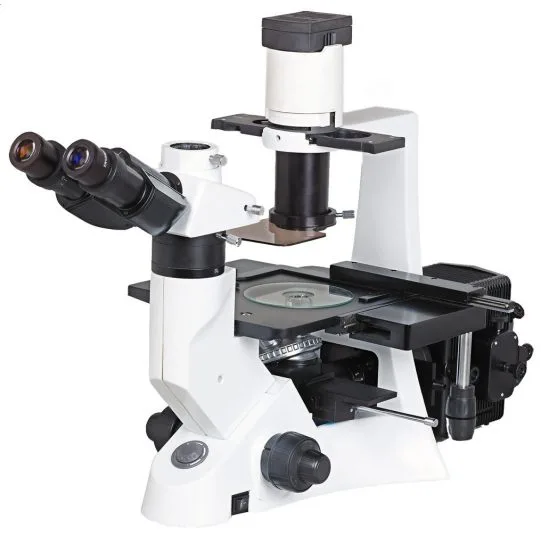

Optek Nowel - NIB-100F
Opis
Pełny opis
|
· |
Excellent fluorescent image with high resolution fluorescent objectives |
|
· |
Protect the light leak with advanced lamp housing |
|
· |
Excellent Optical Function with Infinitive Optical System |
|
· |
Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue |
|
· |
Widely used in venereal disease examination and immuneless diagnosis |
|
Specification： |
|
|
NIB-100F |
||||
|
Optical System |
Infinite Optical System |
● |
|||
|
Viewing Head |
Trinocular Head Inclined at 30°, Interpupillary 48-75mm |
● |
|||
|
Eyepiece |
High-point, Extra Wide Field Eyepiece EW10×/ 22 |
● |
|||
|
Nosepiece |
Quintuple Nosepiece |
● |
|||
|
Objective |
LWD Infinite Plan Objective |
4×/0.1, WD 18mm |
● |
||
|
10×/0.25, WD 10mm |
○ |
||||
|
20×/0.4, WD 5.1mm |
○ |
||||
|
40×/0.6, WD 2.6mm |
● |
||||
|
Infinite Plan Phase Objective |
PH 10×/0.25, WD 10mm |
● |
|||
|
PH 20×/0.4, WD 5.1mm |
● |
||||
|
PH 40×/0.6, WD 0.35mm |
○ |
||||
|
Infinite Plan Fluorescent Objective |
4×/0.13, WD 16.3mm |
○ |
|||
|
10×/0.3, WD 12.4mm |
○ |
||||
|
20×/0.4, WD 1.5mm |
○ |
||||
|
40×/0.6, WD 2.2mm |
○ |
||||
|
Condenser |
ELWD Condenser NA 0.3, LWD 72mm |
● |
|||
|
Focusing |
Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation |
● |
|||
|
Stage |
Plain stage 160×250 mm |
● |
|||
|
Glass Insert |
● |
||||
|
Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm |
○ |
||||
|
Auxiliary Stages70×180mm |
● |
||||
|
Terasaki Holder |
○ |
||||
|
ф38mm Petri Dish Holder |
○ |
||||
|
ф54mm Slide Glass Holder |
○ |
||||
|
Illumination |
Halogen Lamp6V/ 30W |
● |
|||
|
Filter |
Blue/ Green and Ground Glass (ф45mm) |
● |
|||
|
Phase Annulus |
● |
||||
|
Centering telescope(ф30) |
○ |
||||
|
Photo Attachment |
○ |
||||
|
Video Adapter |
Video Adapter with C Mount |
○ |
|||
|
Reflected Light Source |
|
Excitation |
Dichroic Mirror |
Barrier Filter |
|
|
Blue excitation |
BP460～490 |
DM500 |
BA520 |
● |
|
|
Blue excitation (B1) |
BP460～495 |
DM505 |
BA510-550 |
○ |
|
|
Green excitation |
BP480～550 |
DM570 |
BA590 |
● |
|
|
Ultraviolet excitation |
BP330～385 |
DM400 |
BA420 |
○ |
|
|
Violet excitation |
BP400～410 |
DM455 |
BA455 |
○ |
|
|
Lamp |
100W HBO Ultra Hi-voltage Spherical Mercury Lamp |
● |
|||
|
Protection barrier |
Barrier to Resist the Ultraviolet Light |
● |
|||
|
Power Supplier |
Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display |
● |
|||
|
Immersion Oil |
Fluorescent Free Oil |
● |
|||
|
Neutral ND25/ ND6 Filter |
○ |
||||
|
Centering Plate |
● |
||||
|
Note: ● Standard Outfit, ○ Optional |
FI-100 Inverted Fluorescent Attachment :
Characteristics of Mirror Units Wavelength :
