Optek Nowel - NLCD-307
Opis
Pełny opis

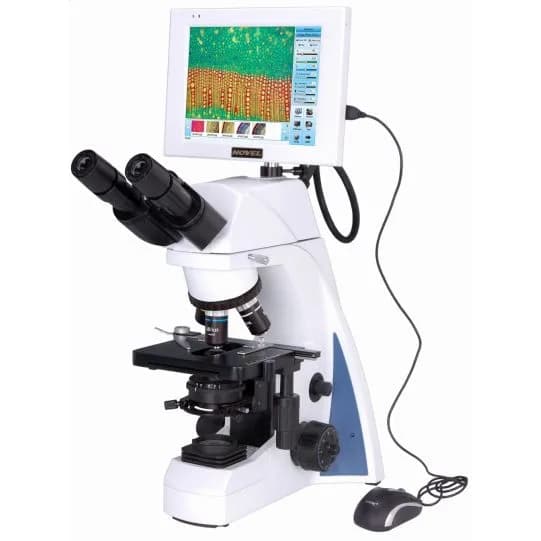

This LCD digital microscope is a bland new system that has an embedded system. With a 8.4” TFT screen, friendly man-machine interface, powerful processing function (real-time preview, dynamic calibrating and measuring), multiple peripheral interfaces, and comfortable mechanical design; it become a new generation microscope and easy to operate. So it is your good assistant in teaching, research and electronic checking!
|
Specification: |
|
|
|
NLCD-307 |
|
Digital part |
2.0 Mega Pixels CMOS Chip |
● |
|
W-LAN and LAN function |
● |
|
|
Viewing Head |
Compensation Free binocular head, 30° inclined, Interpupillary 48-75mm |
● |
|
Eyepiece |
Wide Field Eyepiece EW10×/ 18 |
● |
|
Objective |
Infinite Semi-Plan Achromatic Objective 4×、10×、40×、100× |
● |
|
Nosepiece |
Quadruple Nosepiece |
● |
|
Stage |
Double Layers Mechanical Stage 140×140/ 75×50 |
● |
|
Condenser |
Sliding-in centerable condenser NA12.5 |
● |
|
Illumination |
6V/ 20W Halogen Lamp Illumination, Adjustable Brightness |
● |
|
LED Illumination, Adjustable Brightness |
○ |
|
|
LCD Screen |
8.4 Inch TFT Touching screen |
● |
|
Output |
USB2.0、AV and VGA Output,100M Ethernet interface |
● |
|
System |
Windows CE 5.0 |
● |
|
Software |
NMS & NMS Client |
● |
|
SD Card |
Expandable to Max 2GB Kinston SD Card |
○ |
|
Mouse |
|
○ |
|
Note: ● Standard Outfit, ○ Optional |
