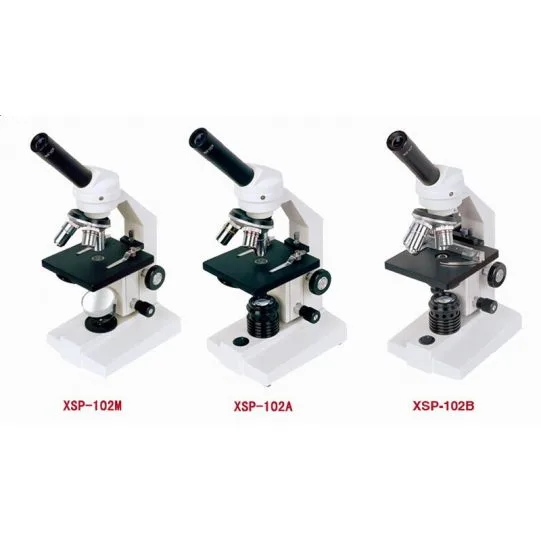

Optek Nowel XPS-102 Series

Specification：

XSP-102M

XSP-102A

XSP-102B

Viewing Head

Monocular Head, Inclined at 45°,  360° Rotatable

●

●

●

Eyepiece

Wide Field Eyepiece WF10×/18

●

●

●

Wide Field Eyepiece WF16×/11

Objective

Achromatic DIN 4×、10×、40×(S)

●

●

Achromatic DIN  4×、10×、
40×(S) ,100×(S, Oil)

●

Nosepiece

Triple Nosepiece

●

●

Quadruple Nosepiece

●

Stage

Plain Stage with Slide Clips
120×130mm

●

●

Attachable Mechanical Stage
120×130mm/ 60×30mm

●

Condenser

Single Lens with Disc Diaphragm

●

●

Abbe NA 1.25 with Iris Diaphragm and Filter

●

Illumination

Plan-concave Mirror

●

Built-in Illumination, Incandescent Lamp 110V/ 220V/ 15W

●

●

Focusing

Separate coaxial knobs for coarse &
fine adjustment

●

●

●

Note : ● Standard Outfit, ○ Optional
