Optek Nowel XSZ-107BN Series

Name: Optek Nowel XSZ-107BN Series
SKU: LEGACY-117

LEGACY-117

Cena na zapytanieWycenimy tę pozycję pisemnie.

Na zamówienie — 14 dni

Zapytaj o ofertę

Opis

Pełny opis

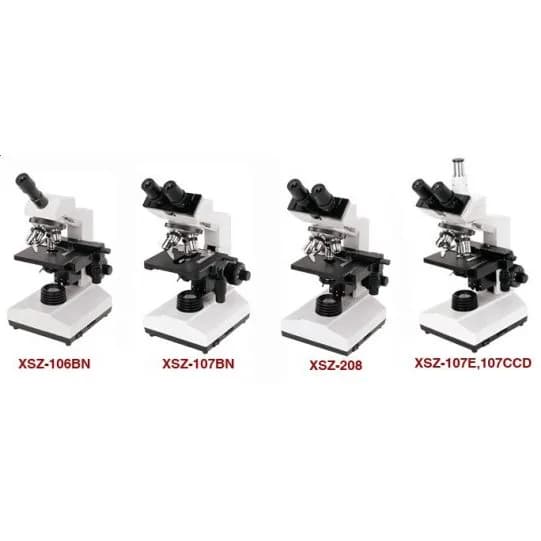

With Classical Shape, XSZ-107BN series microscope has been popular for 30 years. It can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.

Specification：

		106BN	107BN	207	107E	107CCD
Viewing Head	Monocular Head Inclined at 45°, 360° Rotatable	●
	Sliding Binocular Head Inclined at 45°, 360° Rotatable		●
	Compensation Free Binocular Head Inclined at 30°, 360° Rotatable			●
	Sliding Trinocular Head for Photography				●
	Sliding Trinocular Head for Video Camera (C Mount)					●
Eyepiece	Wide Field Eyepiece WF10×/ 18	●	●	●	●	●
Eyepiece	Wide Field Eyepiece WF16×/ 11	●	●	●	●	●
Objective	Achromatic Objective 4×、10×、40×、100×	●	●	●	●	●
	Achromatic Objective 20×、60×	○	○	○	○	○
	Plan Achromatic Objective 4×、10×、20×、40×、60×、100×	○	○	○	○	○
Nosepiece	Quadruple Nosepiece	●	●	●	●	●
Stage	Double Layer Mechanical Stage 140×140mm/ 75×50mm			●
Stage	Single Layer Mechanical Stage140×140mm/ 75×50mm	●	●		●	●
Condenser	Abbe NA1.25 with Iris Diaphragm & Filter	●	●	●	●	●
Illumination	Built-in Illumination, Halogen Lamp 6V/ 20W		●	●	●	●
	Plan-concave Mirror	●	●	●	●	●
	Kohler illumination		○	○	○	○
Photo Attachment					○
Video Adapter	C Mount 1×				○	●
Video Adapter	C Mount 0.5×				○	○
Filter	Blue Filter	●	●	●	●	●
Filter	Green Filter	●	●	●	●	●
Polarization Set	Simple Polarization Set	○	○	○	○	○
Phase Contrast Kit	Simple phase contrast kit	○	○	○	○	○
	Sliding phase contrast kit	○	○	○	○	○
	Turret phase contrast kit	○	○	○	○	○
Dark Field Attachment	Dark Field Attachment (Dry) NA0.9	○	○	○	○	○
Dark Field Attachment	Dark Field Attachment (Oil) NA1.25-1.36	○	○	○	○	○
