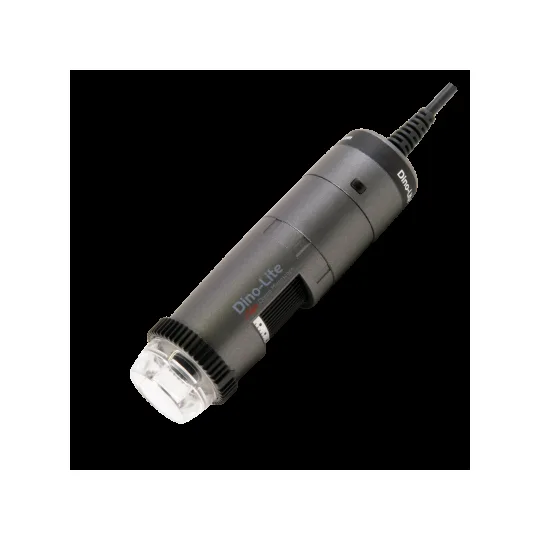

AF4135ZTLE EDGE
Technical data
| Resolution | 1.3 MP |
|---|---|
| Magnification | 10x–200x |
| Interface | USB 2.0 |
| Light | White |
| Polarizer | Yes |
| Long working distance (LWD) | Yes |
| Flexible LED control (FLC) | Yes |
| Measurement | Yes |
| Detachable front cap | Yes |
Description
Full description
Dino-Lite AF4135ZTLE jest częścią serii Long Working Distance (LWD, duża odległość robocza) i łączy się z z innymi sprzętami przez port USB. AF4135ZTLEjest urządzeniem przystosowanym do pracy w trybie bezprzewodowym, ale do stworzenia w pełni bezprzewodowego rozwiązania wymaga modułu WF-20 (opcjonalny).
W porównaniu seria AF4x35 oferuje podobny zakres odległości roboczej, ale osiąga większe powiększenia w porównaniu do serii AM4x15.
Model AF4135ZTLEjest wyposażony w najwyższej klasy funkcje, takie jak Elastyczne Sterowanie Diodami LED (FLC), zintegrowany polaryzator, rozbudowane funkcje pomiarowe.
Główne cechy AF4135ZTLE to:
• Przystosowany do pracy bezprzewodowej – wymagany moduł WF-20 (opcjonalny)
• 1.3MP EDGE SENSOR
• Powiększenie 10x ~ 200x
• Zintegrowany polaryzator (powłoka antyrefleksyjna)
• Rozbudowana funkcjonalność pomiarowa
• Flexible LED Control (FLC)
• I więcej...
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 8 |
| LED on/off switchable: | Yes |
| Infrared filter | IR cut-filter >650 nm |
| Diffuser available | Yes (N3C-D included) |
| Emission filter | No |
| Polarizer | Yes, linear |
| Optics | |
| Magnification | 10x ~ 200x |
| Macro zoom | No |
| Working distance | Long |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280x1024) |
| Maximum frame rate | 30 fps |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.12 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (MacOS) | JPEG, PNG |
| Supported video formats (MacOS) | MOV |
| Imaging standards | DirectShow, UVC |
| Wifi | Wireless-ready, requires the WF-20 adapter (optional) |
| Housing | |
| Housing material | Composite/ plastic housing |
| Magnification lock | Yes |
| Dimensions | 11.4cm (L) x 3.3cm (D) |
| Weight | 111g |
| Cable length | 1.8m |
| Features | |
| Special feature | Flexible LED Control (FLC) |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| ESD safe | No |
| Information | |
| Package contents | Microscope, carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Magnification Rate | Working Distance * | Field of View(x) | Field of View(y) | Depth of Field |
|---|---|---|---|---|
| Listed values may differ slightly |
* Without front cap | Unit = mm | ||
| 10 | 355.8 | 39.1 | 29.3 | 55.2 |
| 20 | 173.0 | 19.5 | 14.7 | 14.5 |
| 30 | 113.1 | 13.0 | 9.8 | 6.7 |
| 40 | 83.8 | 9.8 | 7.3 | 3.9 |
| 50 | 66.8 | 7.8 | 5.9 | 2.6 |
| 60 | 55.9 | 6.5 | 4.9 | 1.9 |
| 70 | 48.6 | 5.6 | 4.2 | 1.5 |
| 80 | 43.4 | 4.9 | 3.7 | 1.2 |
| 90 | 39.8 | 4.3 | 3.3 | 1.0 |
| 100 | 37.1 | 3.9 | 2.9 | 0.8 |
| 110 | 35.2 | 3.6 | 2.7 | 0.7 |
| 120 | 33.8 | 3.3 | 2.4 | 0.6 |
| 130 | 32.9 | 3.0 | 2.3 | 0.5 |
| 140 | 32.3 | 2.8 | 2.1 | 0.5 |
| 150 | 32.0 | 2.6 | 2.0 | 0.4 |
| 160 | 31.8 | 2.4 | 1.8 | 0.4 |
| 170 | 31.9 | 2.3 | 1.7 | 0.4 |
| 180 | 32.1 | 2.2 | 1.6 | 0.3 |
| 190 | 32.5 | 2.1 | 1.5 | 0.3 |
| 200 | 33.0 | 2.0 | 1.5 | 0.3 |
