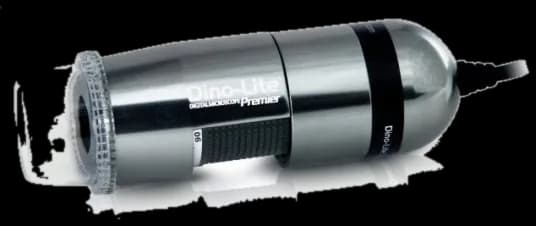

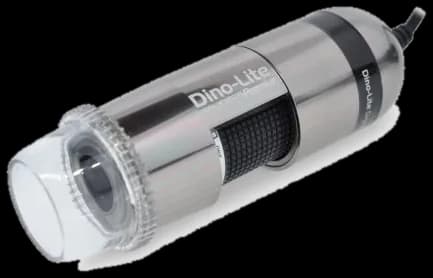

Dino-Lite - AM4013MZTL

Details

• Dino-Lite range:
  Dino-Lite ProX metal housing

• Illumination

• Light type:
  White LED
• Number of LEDs:
  8
• LED on/off switchable:
  Yes
• Infrared filter:
  IR cut filter > 650 nm
• Diffuser:
  MSAA111A2 (optional accessory)
• Emission filter:
  No
• Polariser:
  Yes, linear

• Optics

• Magnification:
  10–90x
• Working distance:
  Long
• Lens type:
  Glass with an anti-reflective coating

• Sensor

• Sensor type:
  CMOS
• Resolution:
  1.3 megapixel (1280 × 1024)
• Maximum frame rate:
  30 fps

• Compatibility

• USB type:
  USB 2.0
• Operating system:
• Windows XP, Vista, 7 & 8; macOS 10.4 and later
• Included software:
  DinoCapture 2.0 (Windows), DinoXcope (macOS)
• Supported image formats (Windows):
  BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows):
  WMV, FLV, SWF
• Supported image formats (macOS):
  JPEG, PNG
• Supported video formats (macOS):
  MOV
• Imaging standard:
  DirectShow, UVC

• Housing

• Material:
  Aluminium alloy
• Magnification lock:
  No
• Dimensions:
  10.5 cm (L) × 3.2 cm (W)
• Weight:
  140 g
• Cable length:
  1.8 m

• Features

• Measurement:
  Yes
• Calibration:
  Yes
• MicroTouch sensor:
  Yes
• ESD:
  Yes

• Information

• The package contains:
  Microscope, case, software CD, calibration target, ZT-Z-CC1 cap, manual
• Warranty information:
  2-year European warranty
• Certificates:
  CE, FCC, RoHS
• Working distance / field of view / depth of field:



  Magnification	Working distance	Field of view (x)	Field of view (y)	Depth of field
  The values listed may vary slightly				Unit = mm
  20	160.5	19.8	14.9	6
  30	110.4	13.2	9.9	3.4
  40	86.7	9.9	7.4	2.2
  50	73.6	7.9	5.9	1.65
  60	65.7	6.6	5.0	-
  70	60.8	5.7	4.2	-
  80	57.8	5.0	3.7	-
  90	56.1	4.4	3.3	0.8
