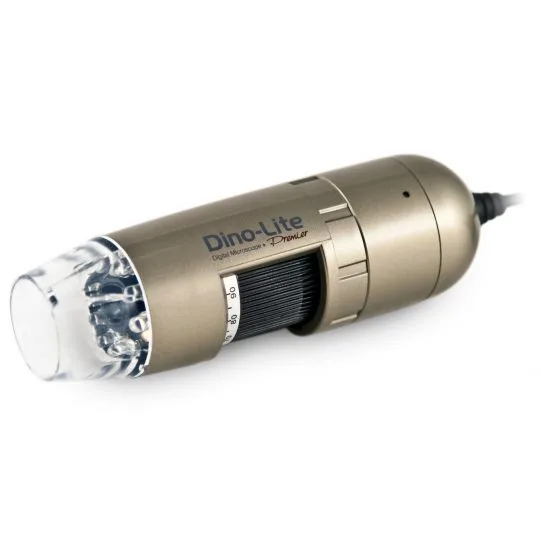

Dino-Lite - AM4113TL-M40

Details

• Dino-Lite range:
  Dino-Lite Pro

• Lighting

• Light/ LED type:
  White
• Number of LEDs:
  8
• LED on/off switchable:
  Yes
• Infrared filter:
  IR cut-filter >650 nm
• Diffuser available:
  MSAA111A1 (optional accessory)
• Emission filter:
  No
• Polarizer:
  No

• Optics

• Magnification:
  5-40x
• Working distance:
  Long
• Lens type:
  Glass with anti-reflection coating

• Sensor

• Sensor type:
  CMOS
• Resolution:
  1.3 Megapixel (1280x1024)
• Maximum frame rate:
  30 fps

• Compatibility

• Interface:
  USB 2.0
• Operating system:
  Windows XP, Vista, 7 & 8, MacOS 10.4 and up
• Included software:
  DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows):
  BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows):
  WMV, FLV, SWF
• Supported image formats (MacOS):
  JPEG, PNG
• Supported video formats (MacOS):
  MOV
• Imaging standards:
  DirectShow, UVC

• Housing

• Housing material:
  Composite/ plastic housing
• Magnification lock:
  Yes
• Dimensions:
  10.5cm (L) x 3.2cm (D)
• Weight:
  105g
• Cable length:
  1.8m

• Features

• Measurement:
  Yes
• Calibration:
  Yes
• Microtouch sensor:
  Yes
• ESD safe:
  No

• Information

• Package contents:
  Microscope, Carry pouch, Software CD, Desktop cradle, Calibration target, User manual
• Warranty information:
  2 years European warranty
• Regulatory approval:
  CE, FCC, ROHS
• Price range:
  €200,00 - €350,00
• Working distance/ field of view/ depth of field:



  Magnification Rate	Working Distance	Field of View(x)	Field of View(y)	Depth of Field
  Listed values may differ slightly				Unit = mm
  10.5	195	37	30	16
  21	95	18	15	5
  30	67	13	10	3
  39	53	10	8	2.5
