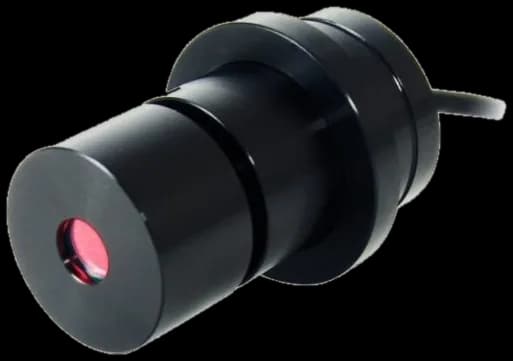

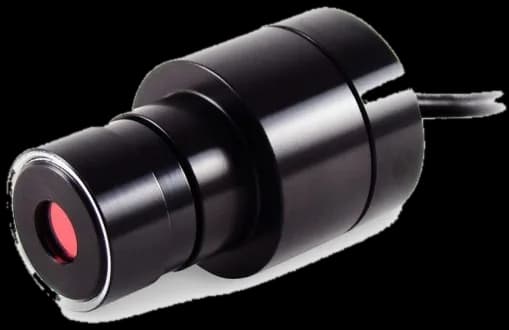

Dino-Lite - AM4023 Dino-Eye USB
Technical data
| Resolution | 1.3 MP |
|---|---|
| Interface | USB 2.0 |
| Metal housing | Yes |
| Magnification | Yes, built in |
| Lens type | Glass with anti-reflective coating |
| Sensor type | CMOS |
| Max frame rate | 30 fps |
| Interface | USB 2.0 |
| Operating system | Windows 7, 8, 10 & 11; macOS 10.9 and later |
| Included software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (macOS) | JPEG, PNG |
| Supported video formats (macOS) | MOV |
| Standardy obrazowania | DirectShow, UVC |
| Wifi | No |
| Housing material | Metal |
| Dimensions | 48 mm x 32 mm |
| Weight | 95 g |
| Outer eye diameter | 23, 30, 30,5 mm |
| Mount type | Internal eyepiece / tube |
| Inner diameter | 23 mm |
| Special feature | No |
| Measurements | Yes |
| Calibration | Yes |
| MicroTouch sensor | No |
| Contents | DinoEye eyepiece camera, carry pouch, software CD, calibration target, user manual |
| Warranty | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Accessory range | DinoEye Eyepieces |
Description
Full description

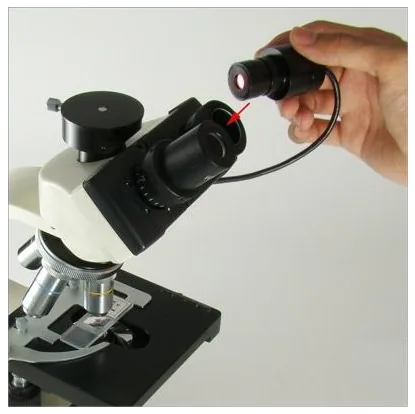

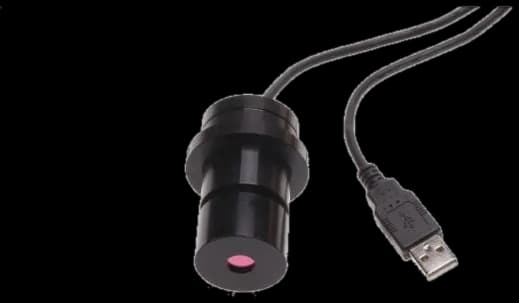

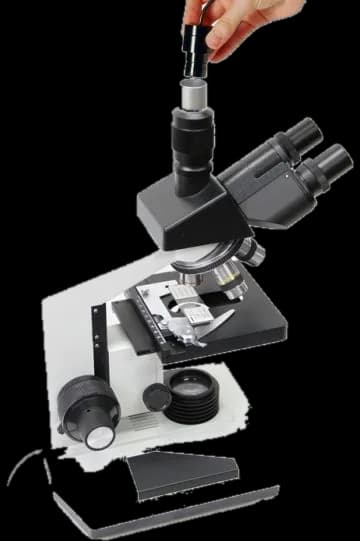

Dino-Eye is a line of digital eyepiece cameras. Swap the eyepiece of an ordinary microscope for a Dino-Eye and the microscope becomes a digital one. The AM4023 connects to a PC over USB and fits 23 mm eyepiece tubes. DinoCapture software is included.
| Optics | |
|---|---|
| Magnification | yes, built in |
| lens type | glass with an anti-reflective coating |
| Sensor | |
| sensor type | CMOS |
| Resolution | 1.3 megapixel (1280 × 1024) |
| Max frame rate | 30 fps |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 7, 8, 10 & 11; macOS 10.9 and later |
| Included software | DinoCapture 2.0 (Windows), DinoXcope (macOS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (macOS) | JPEG, PNG |
| Supported video formats (macOS) | MOV |
| Imaging standards | DirectShow, UVC |
| Wi-Fi | no |
| Housing | |
| housing material | Metal |
| dimensions | 48 mm × 32 mm |
| Weight | 95 g |
| cable length | 1.8 m |
| outer eyepiece diameter | 23, 30, 30.5 mm |
| mount type: |
internal eyepiece / tube |
| inner diameter |
23 mm |
| Features | |
| Special feature | No |
| measurements | Yes |
| calibration | Yes |
| MicroTouch sensor | No |
| Information | |
| contents | DinoEye eyepiece camera, carry pouch, software CD, calibration target, user manual |
| warranty | 2-year European warranty |
| Regulatory approval | CE, FCC, RoHS |
| Price range | €150,00 - €250,00 |
| Accessory range: | DinoEye eyepieces |
