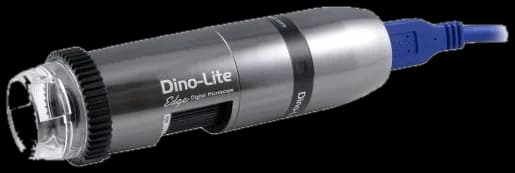

Dino-Lite AM73115MZT USB 3.0

ADDITIONAL INFORMATION

• Details

• Dino-Lite range:
  Dino-Lite High Speed

• Illumination

• Lighting type:
  White LED
• Number of LEDs:
  8
• LED on/off switchable:
  Yes
• Infrared filter:
  IR cut filter > 650 nm
• Diffuser:
  Yes (N3C-D included)
• Emission filter:
  No
• Polariser:
  Yes, linear

• Optics

• Magnification:
  20–220x
• Macro zoom:
  No
• Working distance:
  Standard
• Lens type:
  Glass with an anti-reflective coating

• Sensor

• Sensor type:
  CMOS
• Resolution:
  5 megapixel (2592 × 1944)
• Maximum frame rate:
  45 fps

• Compatibility

• USB type:
  USB 3.0, cable included**
• Operating system:
  Windows XP, Vista, 7, 8 & 10; macOS 10.9 and later
• Included software:
  DinoCapture 2.0 (Windows), DinoXcope (macOS)
• Supported image formats (Windows):
  BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows):
  WMV, FLV, SWF
• Supported image formats (macOS):
  JPEG, PNG
• Supported video formats (macOS):
  MOV
• Imaging standard:
  DirectShow, UVC

• Housing

• Material:
  Metal
• Magnification lock:
  Yes
• Dimensions:
  11.9 cm (L) × 3.3 cm (⌀)
• Weight:
  110 g
• Cable length:
  1.8 m

• Features

• Special features:
  LED control (FLC)
• Measurement:
  Yes
• Calibration:
  Yes
• MicroTouch sensor:
  Yes
• ESD:
  Yes

• Information

• The package contains:
  Microscope, case, software CD, calibration target, manual, N3C-O open cap, N3C-C closed cap, N3C-D diffuser cap, N3C-E extension cap, N3C-L long cap, N3C-S side-light cap
• Warranty information:
  2-year European warranty
• Certificates:
  CE, FCC, RoHS

•

  Magnification	Working distance	Field of view (X)	Field of view (Y)	Depth of field
  The values listed may vary slightly				Unit = mm
  20	60.2	19.5	14.6	2.5
  30	33.5	13.0	9.7	1.8
  40	20.9	9.8	7.3	1.5
  50	13.9	7.8	5.8	-
  60	9.7	6.5	4.8	-
  70	7.1	5.6	4.2	1
  80	5.5	4.9	3.6	-
  90	4.5	4.3	3.2	-
  100	4.1	3.9	2.9	-
  110	4	3.6	2.7	-
  120	4.1	3.3	2.4	-
  130	4.5	3.0	2.2	-
  140	5	2.8	2.1	-
  150	5.6	2.6	1.9	-
  160	6.3	2.4	1.8	-
  170	7.1	2.3	1.7	-
  180	8	2.2	1.6	-
  190	8.9	2.1	1.5	-
  200	9.9	2.0	1.5	-
  210	10.9	1.9	1.4	-
  220	11.9	1.8	1.3	-
