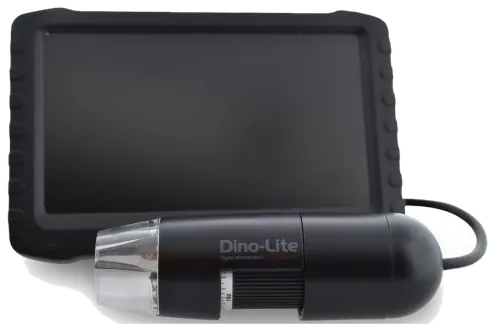

Dino-Lite - AMK4012T-D15

Details

• Dino-Lite range:
  Dino-Lite Mobile

• Lighting

• Light / LED type:
  White
• Number of LEDs:
  8
• LED on/off switchable:
  Yes
• Infrared filter:
  IR cut filter > 650 nm
• Diffuser available:
  MSAA111A1 (optional accessory)
• Emission filter:
  No
• Polariser:
  No

• Optics

• Magnification:
  10–70x, 200x
• Working distance:
  Standard
• Lens type:
  Glass with an anti-reflective coating

• Sensor

• Sensor type:
  CMOS
• Resolution:
  720 × 576 pixels
• Maximum frame rate:
  30 fps

• Compatibility

• Interface:
  TV (RCA) PAL
• Operating system:
  -
• Included software:
  -
• Supported image formats (Windows):
  -
• Supported video formats (Windows):
  -
• Supported image formats (macOS):
  -
• Supported video formats (macOS):
  -
• Imaging standards:
  -

• Housing

• Housing material:
  Composite / plastic housing
• Magnification lock:
  No
• Dimensions:
  Microscope: 10.5 cm (L) × 3.2 cm (D); recorder: 131 × 86 × 18 mm
• Weight:
  Microscope: 95 g; recorder: 200 g
• Cable length:
  1.8 m

• Features

• Measurement:
  No
• Calibration:
  No

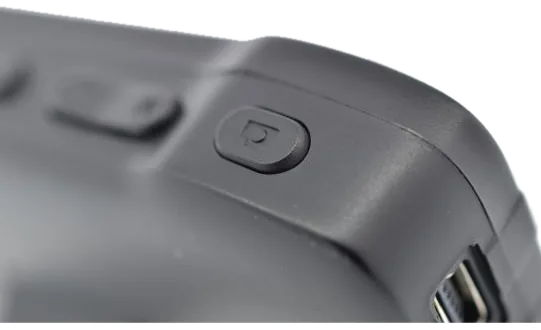

• MicroTouch sensor:
  Yes
• ESD safe:
  No

• Information

• Package contents:

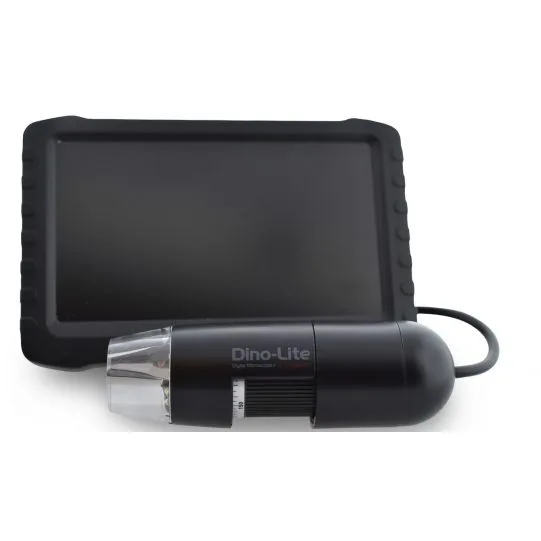

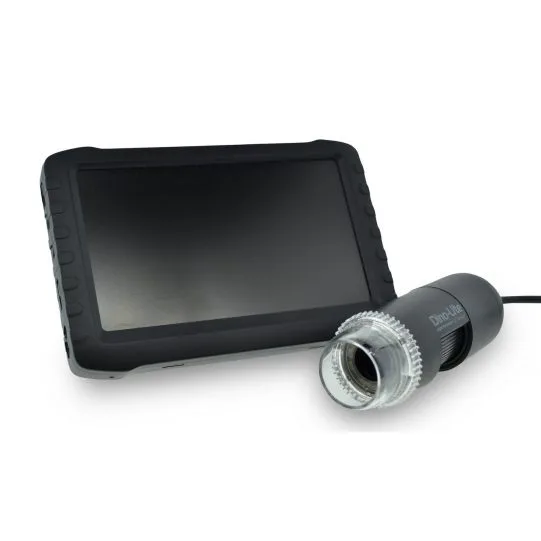

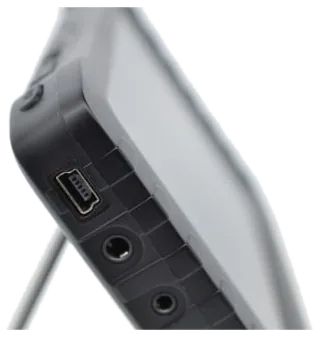

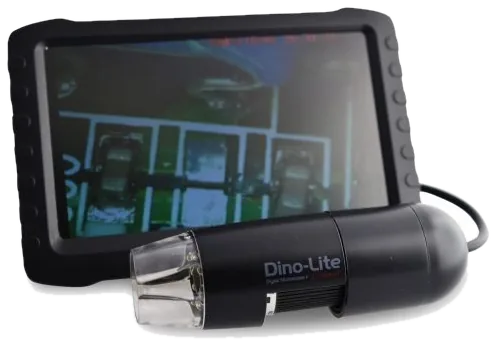

  Microscope, 5" portable LCD monitor/recorder, 4 GB microSD card, USB cable, 110 V/240 V AC power adapter, rechargeable battery, mounting bracket for the recorder, CA1070 watertight hard case, user manual

• Warranty information:
  2-year European warranty
• Regulatory approval:
  CE, FCC, RoHS
• Price range:
  €550.00 and above
• Working distance / field of view / depth of field:



  Magnification	Working distance	Field of view (x)	Field of view (y)	Depth of field
  The values listed may vary slightly				Unit = mm
  20	51.7	19.9	15.0	7.4
  30	24.1	13.2	10.0	3.8
  40	11.0	9.9	7.5	-
  50	3.8	7.9	6.0	1.8
  60	-0.6	6.6	5.0	-
  200	-0.4	2.0	1.5	0.42
  210	0.6	1.9	1.4	-
  220	1.7	1.8	1.4	-
  230	2.8	1.7	1.3	-
