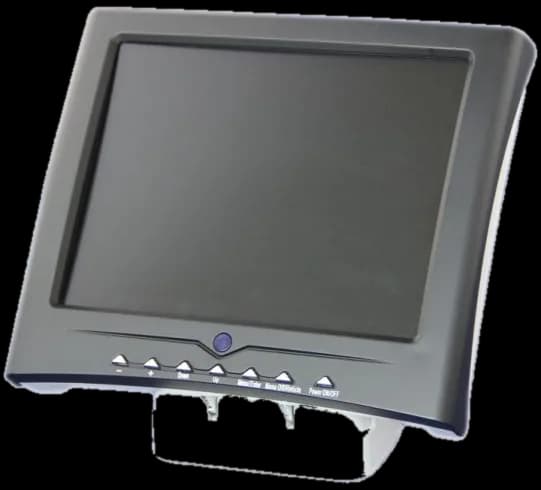

Optek 520TV LCD monitor
Technical data
| Sensor | 1/3" |
|---|---|
| Horizontal lines | 520 TVL |
| RGB | True colour, 16.7 million colours (16,777,216) |
| Sensor resolution | 768(H)x576(V) |
| Displayed resolution | natywna: 800x600, max. 1024x768@75Hz |
| White balance | Auto / Manual |
| Reflected light compensation | Auto |
| S/N ratio | >46db |
| Video input | TTL, P or N, 0.7 Vp-p @ 75 Ω |
| Audio input | 500mVrms |
| Connector | C-Mount |
| Power supply | 12V DC |
Description
Sensor: 1/3"
Horizontal lines: 520 TVL
RGB: True colour, 16.7 million colours (16,777,216)
Sensor resolution: 768 (H) × 576 (V)
Displayed resolution: native: 800 × 600, max. 1024 × 768 @ 75 Hz
White balance: Auto / manual
Reflected light compensation: Auto
S/N ratio: > 46 dB
Gamma: 0.45
Minimum illumination: 3.1 lux
Video input: TTL, P or N, 0.7 Vp-p @ 75 Ω
Audio input: 500 mVrms
Connector: C-Mount
Power: 12 V DC
