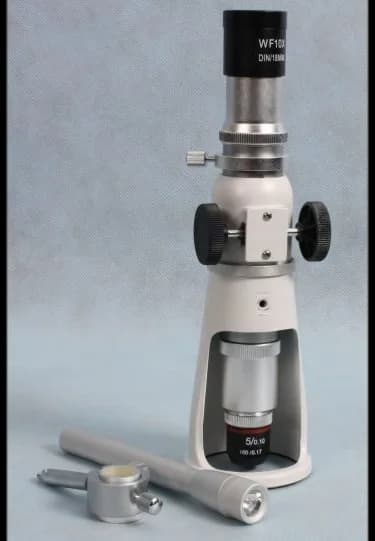

OPMM Measuring 50x
Technical data
| Microscope used across many fields | Printing, metallurgy, numismatics, philately and similar |
|---|---|
| Head | Monocular |
| Eyepiece | Measuring, graduated WF10x/18 mm |
| Objective (magnification / N.A. / W.D.) | 5x/0.10 |
| Nosepiece | Single socket |
| Magnification | 50 x |
| Zoom | - |
| Working distance | 18 mm |
| Stage | - |
| Filter | - |
| Condenser | - |
| Focusing system | Coarse focus knob |
| Light source | Lamp, 2 × AAA 1.5 V |
| Microscopy method | - |
| Measurement | Reticle with a 0.1 mm grid |
| Dimensions | 143x63x210 mm |
| Optional accessories | - |
Description
A microscope used across many fields: printing, metallurgy, numismatics, philately and the like.
Head: monocular
Eyepiece: Measuring, graduated WF10x/18 mm
Objective (magnification / N.A. / W.D.): 5x/0.10
Nosepiece: single socket
Magnification: 50x
Zoom: -
Working distance: 18 mm
Stage: -
Filter: -
Condenser: -
Focusing system: coarse focus knob
Light source: lamp, 2 × AAA 1.5 V
Microscopy method: -
Measurement: reticle with a 0.1 mm grid
Dimensions: 143 × 63 × 210 mm
Weight: 0.65 kg
Optional accessories: -
