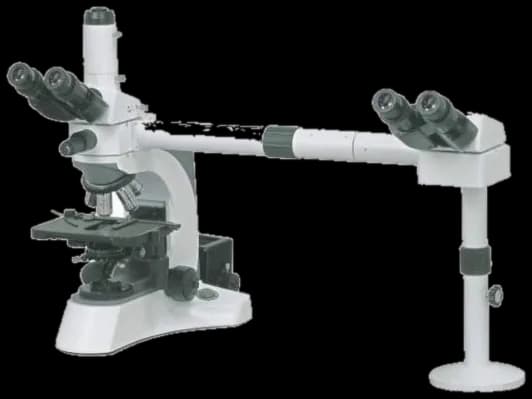

Optek Multiview
Technical data
| Main head | Trinocular inclined at 30°, rotates 360°, interpupillary distance 48–75 mm |
|---|---|
| Assistant head | Binocular inclined at 30°, rotates 360°, interpupillary distance 48–75 mm |
| Eyepieces | Wide-field WF10x/20 |
| Objectives | Infinity-corrected plan achromatic 4x, 10x, 40x, 100x |
| Stage travel | Coaxial coarse/fine focus knob, graduation 0.002 mm |
| Stage | Two-layer 185 × 142 mm, travel 75 × 55 mm |
| Light source | Köhler illuminator, 12 V / 50 W |
| Pointer | Green LED with adjustable intensity |
| Video path | Optional |
| Video adapter | C-Mount 1x — optional; C-Mount 0.5x — optional |
Description
AVAILABLE TO ORDER
Technical data:
- Head:
- Main head: trinocular, inclined at 30°, rotates 360°. Interpupillary distance 48–75 mm
- Assistant head: binocular, inclined at 30°, rotates 360°. Interpupillary distance 48–75 mm
- Eyepieces: wide-field WF10x/20
- Nosepiece: five-position, reversed
- Objectives: infinity-corrected plan achromatic 4x, 10x, 40x, 100x
- Condenser: swing-out type, N.A. 0.9/0.25
- Stage travel: coaxial coarse/fine focus knob, graduation 0.002 mm
- Stage: two-layer, 185 × 142 mm. Travel 75 × 55 mm
- Light source: Köhler illuminator, 12 V / 50 W
- Pointer: green LED with adjustable intensity
- Video path: optional
- Video adapter: C-Mount 1x — optional; C-Mount 0.5x — optional
