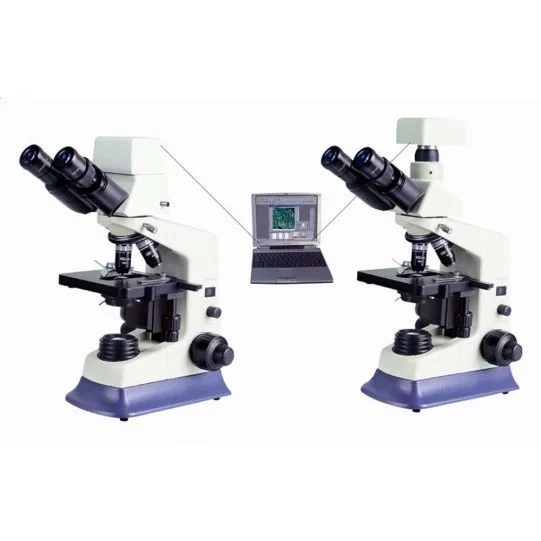

Optek Nowel - DA-180M

Features:

High Sensitive, Real-time Image Display by 1.3M pixel CMOS Digital Camera Connecting to PC through USB2.0 or IEEE1394 Adapter

Sharper Image with Semi-plan Achromatic Objective
Steady Image Show whatever Changing the Magnification of Objective or the Size of Iris Hole

Easy Lamp Replacement Device, just Take away the Collector

Professional and Strong Micro-image Process and Analysis Software

Specification:

DA1-180M

DA2-180M

Audio-video System

1,3M pixels CMOS digital camera with high-resolution, 1280×1024 digital camera system, USB2.0 output

●

●

2.0M pixels CMOS digital camera with high-resolution, 1600×1200 digital camera system, USB2.0 output

○

○

3.0M pixels CMOS digital camera with high-resolution, 2048×1536 digital camera system, USB2.0 output

○

○

Eyepiece

High Point and Wide Field EW10/20

●

●

Viewing Head

Compensation Free Binocular Head at 30°, Interpupilary Distance 55-75mm

●

Compensation Free Binocular Head at 30°, Interpupilary Distance 48-75mm

●

Nosepiece

Backward Quadruple Nosepiece

●

●

Backward Quintuple Nosepiece

○

○

Objective

Semi-plan Achromatic Objective 4×、10×、
40×、100×

●

●

Plan Achromatic Objective 4×、10×、20×、
40×、60×、100×

○

○

Infinite Plan Achromatic Objective System

○

○

Condenser

NA1.25 Abbe Condenser

●

●

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

●

●

Illumination

Halogen Lamp 6V/20W, Brightness Adjustable

●

●

Kohler Illumination

○

○

Filter

Blue Filter

●

●

Green Filter

●

●

Software

ScopeImaage Advanced Micro-image Process Software

●

●

ScopeImaage Analysis Software

○

○

Phase Contrast Kit

Turret Phase Contrast Kit

○

○

Polarization Set

Simple Polarization Attachment

○

○

Dark-field Attachment

Dark-field Condenser(Dry)

○

○

Dark-field Condenser(Oil)

○

○

Pointer

LED Pointer

○

○

Note：● Standard Outfit，○ Optional
