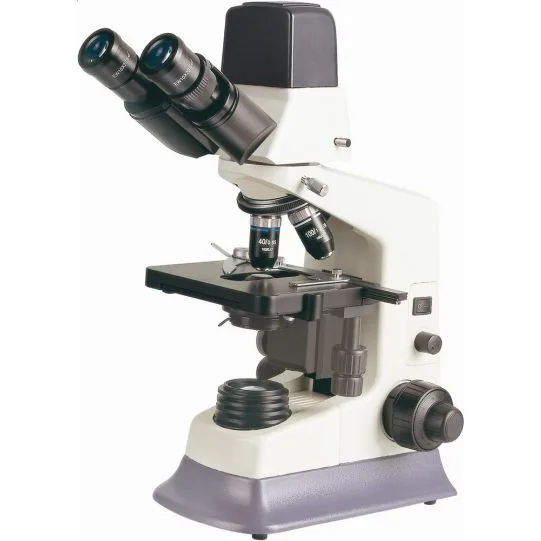

Optek Nowel - DB-180M
Description
Full description
With 0.3M-0.4M pixel and featuring economy, practicality and facility, the microscope is widely used in academic, agricultural and sanitary field.
|
Features: |
|
|
Build-in Digital Camera System |
|
|
Video and digital signal can be obtained at the microscope stand and displayed on TV set and PC monitor at the same time by high resolution chip |
|
Specification: |
|
DB1-180M |
DB2-180M |
||
|
Camera System |
CMOS Digital Camera 0.3M Pixel, USB1.0 Output |
● |
|
|
CCD Digital Camera 0.4M Pixel, RCA, S-Vide, USB2.O Output |
● |
||
|
Eyepiece |
Wide Field Eyepiece EW10×/20 |
● |
● |
|
Viewing Head |
Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 55-75mm |
● |
● |
|
Nosepiece |
Backward Quadruple Nosepiece |
● |
● |
|
Backward Quintuple Nosepiece |
○ |
○ |
|
|
Objective |
Semi-plan Achromatic Objective 4×、10×、40×、100× |
● |
● |
|
Plan Achromatic Objective 4×、10×、20×、40×、60×、100× |
○ |
○ |
|
|
Infinite Plan Achromatic Objective System |
○ |
○ |
|
|
Condenser |
NA1.25 Abbe Condenser |
● |
● |
|
Stage |
Double Layers Mechanical Stage 140×140mm/75×50mm |
● |
● |
|
Illumination |
Halogen Lamp 6V/20W, Brightness Adjustable |
● |
|
|
Halogen Lamp 12V/20W, Brightness Adjustable |
● |
||
|
Kohler Illumination |
○ |
○ |
|
|
Filter |
Blue Filter |
● |
● |
|
Green Filter |
● |
● |
|
|
Software |
ScopeImaage Advanced Micro-image Process Software |
● |
● |
|
ScopeImaage Analysis Software |
○ |
○ |
|
|
Phase Contrast Kit |
Turret Phase Contrast Kit |
○ |
○ |
|
Polarization Set |
Simple Polarization Attachment |
○ |
○ |
|
Dark-field Attachment |
Dark-field Condenser(Dry) |
○ |
○ |
|
Dark-field Condenser(Oil) |
○ |
○ |
|
|
Pointer |
LED Pointer |
○ |
|
Note: ● Standard Outfit，○ Optional |
