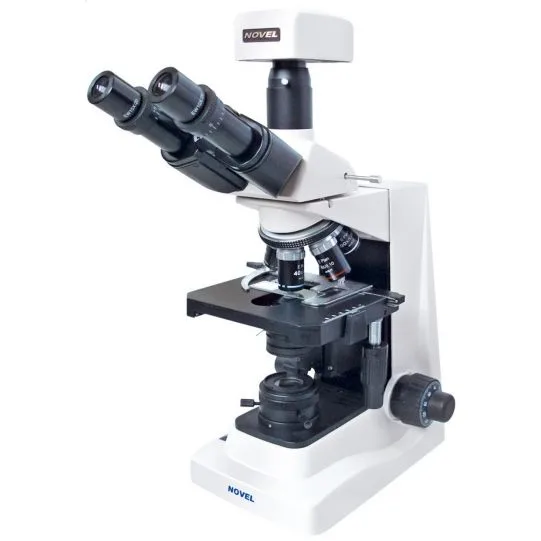

Optek Nowel - DN-400

·

Megapixels digital systems, high-resolution real-time micro-image

·

With high-sensitivity feature, suitable for equipped wide range of accessories such as dark field , phase contrast, Epi-fluorescence and so on

·

Excellent optical performance with infinity optical system

Specification：

DN-401

DN-402

Audio-video System

1,3M pixels CMOS digital camera with high-resolution, 1280×1024 digital camera system

●

2.0M pixels CMOS digital camera with high-resolution, 1600×1200 digital camera system

○

●

3.0M pixels CMOS digital camera with high-resolution, 2048×1536 digital camera system

○

○

1,3M pixels CCD digital camera with high-resolution, 1280×1024 digital camera system

○

○

2.0M pixels CCD digital camera with high-resolution, 1600×1200 digital camera system

○

○

Output Mode

IEEE1394 Digital Output

○

○

1394 PCI Card、1394 Cable

○

○

USB2.0 Output

●

●

Eyepiece

Wide field WF10×/ 20

●

●

Drawtube

Combined Free Viewing Head，Diopter Adjustable

●

●

Infinity Plan Achromatic Objective

4×

●

●

10×

●

●

20×

○

○

40×

●

●

100×

●

●

Nosepiece

Quintuple Nosepiece

●

●

Condenser

NA1.25 Abbe Condenser

●

●

Stage

Double Layers Mechanical Stage 160×140mm/ 76×50mm，Fine Division0.1mm

●

●

Illumination

Kohler Illumination, Halogen Lamp 6V/ 20W

●

●

Filter

Blue Filter

●

●

Green Filter

●

●

Software

ScopeImaage Analysis Software

●

●

Phase Contrast Kit

Turret Phase Contrast Kit

○

○

Polarization Set

Simple Polarization Attachment

○

○

Dark-field Attachment

Dark-field Condenser (Dry)

○

○

Dark-field Condenser (Oil)

○

○

Note: ●Standard Outfit, ○Optional
