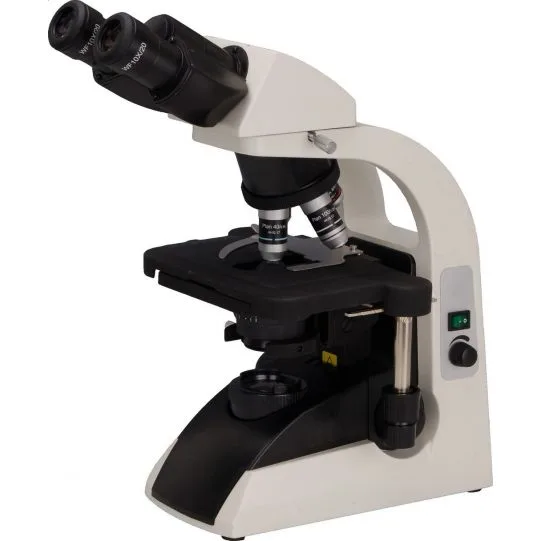

Optek Nowel N-320M
Description
Full description
|
· |
Excellent image quality with infinite optical system. |
|
· |
Comfortable operating with ergonomic design. |
|
· |
Better illumination with sliding-in centerable condenser, convenient replacement with phase contrast and dark field condenser |
|
Feature： |
|
|
To keep the work area clear and to avoid interference with observation operations, the X-direction travel guide does not extend out from the side of the stage. The main and sub-scale displays are designed for easy read-out. The stage can prevent the corrosion and scratches. |
| Specification: |
|
|
|
N-320M |
|
Total Magnification |
4×-1000× |
● |
|
Optical System |
Infinite optical system |
● |
|
Viewing Head |
Siedentopf binocular viewing head, inclined at 30°,360°rotatable |
● |
|
Siedentopf trinocular viewing head, inclined at 30°,360°rotatable |
○ |
|
|
Built-in digital camera system |
○ |
|
|
Eyepiece |
WF10×/20 |
● |
|
WF15×/12 |
○ |
|
|
Objective |
Infinite achromatic objective 4×,10×,40×,100× |
● |
|
Infinite plan achromatic objective 4×,10×,40×,100× |
○ |
|
|
Nosepiece |
Backward quadruple nosepiece |
● |
|
Backward quintuple nosepiece |
○ |
|
|
Focusing |
Coaxial coarse & fine adjustment, range 25mm, fine division 0.002mm |
● |
|
Stage |
Rectangular 216×150mm, cross travel 78×54mm, using low-positioned X/ Y coaxial control knob |
● |
|
Condenser |
Abbe condenser NA1.25 with aperture diaphragm |
● |
| Illumination |
12V/20W Halogen lamp, brightness adjustable |
● |
| 3W LED | ○ | |
|
Optional |
Photo attachment, Video attachment, Polarization set, Phase contrast kit |
○ |
|
Note: ●Standard Outfit, ○Optional |
