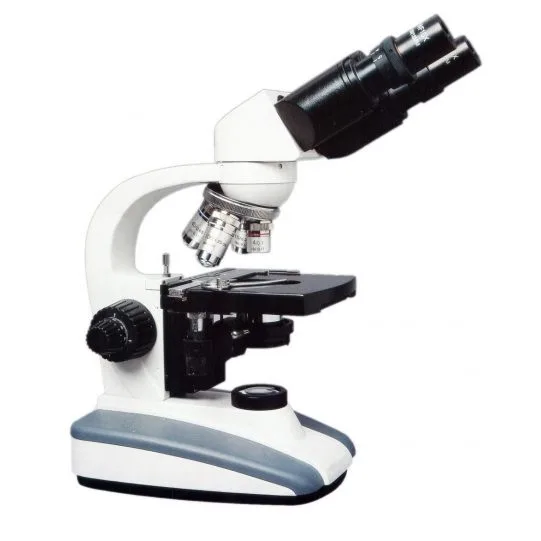

Optek Nowel N-36

Specification:

N-36A1

N-36A2

N-36A3

N-36B

Viewing Head

Monocular head, inclined at 45°,360°rotatable

●

●

●

Siedentopf binocular viewing head, inclined at 30°,360°rotatable, interpupillary distance 55-75mm

●

Eyepiece

WF10×/ 18

●

●

●

●

WF16×/ 11

○

○

○

○

Objective

Achromatic objective 4×,10×,40×(S)

●

●

Achromatic objective 4×,10×,40×(S),100×(S,Oil)

●

●

Nosepiece

Backward triple nosepiece

●

●

Backward quadruple nosepiece

●

●

Focusing

Coaxial coarse & fine adjustment

●

●

●

●

Stage

Plain stage, moving range 60×29mm

●

●

Mechanical stage, moving range 60×30mm

●

●

Condenser

Disc diaphragm

●

Abbe condenser with iris diaphragm

●

     ●

●

Illumination

Plane-concave mirror

●

6V/ 20W Halogen lamp, brightness adjustable

●

●

●
