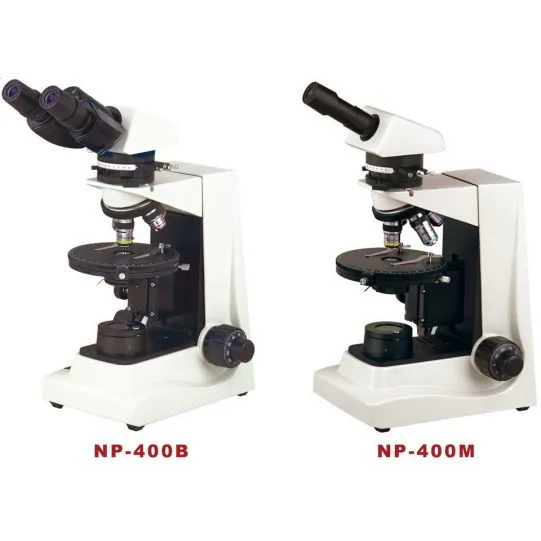

Optek Nowel - NP-400

Polarizing microscope NP-400 can observe mineral crystal figure, color and interference color and also identify its optical performance. It is a good microscope used in geology, petroleum, coal, Chemical fiber, medical treatment and physic inspection. It is also widely used in academic demonstration and research.

Features:

0°-90° Rotatable Analyzer and when out of optical path, Single Polarizing Observation is Available. With Bertrand,
Interferogram of Specimen can be observed clearly.

λ Slip，1/4λ Slip and Quartz Wedge are Equipped

Revolving round stage Φ 145mm, 360°rotatable and graduated in 1° increments, minimum resolution 6，when using vernier scale

Polarizer can be Swung out of Optical Path。6V/20W Halogen Lamp Illumination, Brightness Adjustable

Specification：

NP-400M

NP-400B

NP-400T

Viewing Head

Monocular head inclined at 45°, 360°rotatable

●

Compensation free binocular head inclined at 30°, 360° rotatable

●

Compensation free trinocular head inclined at 30°, 360° rotatable

●

Eyepiece

Eyepiece WF10× /18with scale of crosshair

●

●

●

Eyepiece WF10×/18

●

●

Objective

Strain free achromatic objective 4×、10×、40×、60×

●

●

●

Nosepiece

Backward quadruple nosepiece

●

●

●

Analyzer

Rotatable analyzer with gradation 0°-90°

●

●

●

Bertrand Lens

Bertrand lens, sliding in/out of optical path

●

●

●

Optical Compensator

λ Slip (first class red)，1/4λ Slip quartz wedge

●

●

●

Revolving Round Stage

Diameter Φ145mm, 360° rotatable and graduated in 1°increments, minimum resolution 6‘ when using vernier scale, center adjustable

●

●

●

Condenser

Abbe condenser NA1.25 with iris diaphragm & filter

●

●

●

Focusing

Coaxial coarse & fine adjustment, range 28mm, fine division 0.002

●

●

●

Polarizer

Sliding in/out of optical path, located on the top of collector

●

●

●

Illumination

6V/ 20W Halogen lamp, brightness adjustable

●

●

●

Note : ● Standard Outfit， ○ Optional
