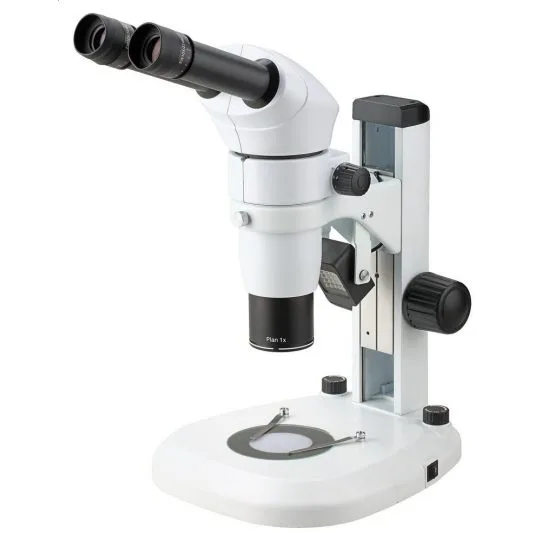

Optek Nowel - NSZ-800

·

Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.

·

Comfortable Operation with Ergonomic Design Principle.

·

With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.

·

A Wide Range of Accessories to be Equipped with the Microscope for Multi-purposeIt is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Specification:

NSZ-806

NSZ-808

NSZ-810

Drawing Tube

Binocular Head, 20°Inclination

●

●

●

Tilting Binocular Head, 0°-35° Inclination

Photo Attachment(one photo tube)

Photo Attachment(two photo tube)

○

○

○

Eyepiece

EW10×/22

●

●

●

WF15×/16

○

○

○

WF20×/12

○

○

○

Zoom Objective

0.8×-5×

●

0.8×-6.4×

●

0.8×-8×

●

Objective

Plan Achromatic Objective 1×

●

●

●

Plan Apochromatic Objective 0.5×

○

○

○

Plan Achromatic Objective 2×

○

○

○

Achromatic Objective 0.3×

Zoom Ratio

1: 6

●

1: 8

●

1: 10

●

Working Distance

78mm

●

●

●

Focusing

Focusing Range 105mm

●

●

●

Illumination

Transmission or Reflection LED Illumination, Brightness Adjustable

●

●

●

Coaxial Illumination

○

○

○

Fluorescent Attachment

○

○

○

Dark Field Attachment

○

○

○

Photo/ Video Attachment

○

○

○

Simple
Polarization Set

○

○

○

Iris Diaphragm

○

○

○

Mechanical Stage

○

○

○

Temperature Stage

○

○

○

Universal Table Stand

○

○

○

D Stand

○

○

○

Coaxial Coarse & Fine Focusing Unit

●

Note: ● Standard Outfit, ○ Optional
