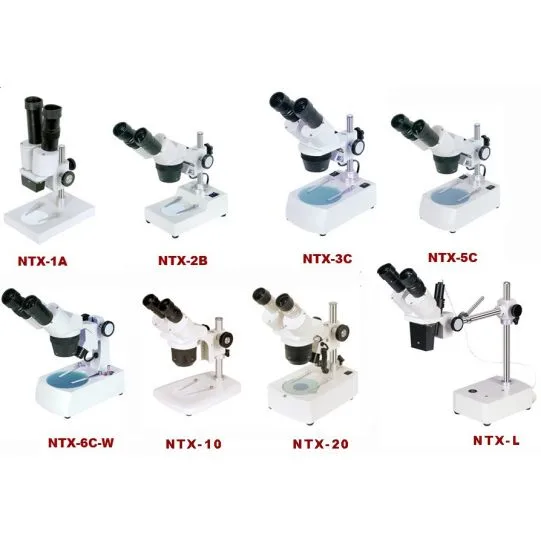

Optek Nowel - NTX Series

Name: Optek Nowel - NTX Series
SKU: LEGACY-134

LEGACY-134

Price on requestWe will quote this line in writing.

On order — 14 days

Description

·	NTX series stereo microscopes are of fully coated excellent optical system providing high resolution and crisp erect image.
·	They are widely used in electric factories, schools laboratories, sculpture and families and so on.

Specifications:

			NTX-1A	NTX-1B	NTX-1C
Head	Straight Binocular Viewing Head		●	●	●
Eyepiece	WF5×		○	○	○
	WF10×		●	●	●
	WF15×		○	○	○
	WF20×		○	○	○
Objective	Inserted Objective	1×	○	○	○
		2×	●	●	●
		3×	○	○	○
		4×	○	○	○
		6×	○	○	○
Working Distance	80mm		●	●	●
Illumination	No Light		●
	Epi-illumination 12V/ 10W			●	●
	Diascopic Illumination 12V/ 10W				●

			NTX-2A	NTX-2B	NTX-2C	NTX-3A	NTX-3B	NTX-3C
Head	Inclined Binocular Viewing Head, Unrotatable		●	●	●	●	●	●
Eyepiece	WF5×		○	○	○	○	○	○
	WF10×		●	●	●	●	●	●
	WF15×		○	○	○	○	○	○
	WF20×		○	○	○	○	○	○
Objective	Inserted Objective	1×	○	○	○
		2×	●	●	●
		3×	○	○	○
		4×	○	○	○
		6×	○	○	○
	Objective	2×、4×				●	●	●
		1×、2×				○	○	○
		1×、3×				○	○	○
Working Distance	80mm		●	●	●
Working Distance	57mm					●	●	●
Illumination	No Light		●			●
	Transmitted light 6V/ 12W			●	●		●	●
	Incident light 6V/ 12W				●			●

			NTX-5A	NTX-5B	NTX-5C	NTX-6C-W
Head	Inclined Binocular Head, 360° Rotatable		●	●	●	●
Eyepiece	WF5×		○	○	○	○
	WF10×		●	●	●	●
	WF15×		○	○	○	○
	WF20×		○	○	○	○
Objective	Inserted Objective	2×、4×	●	●	●	●
		1×、2×	○	○	○	○
		1×、3×	○	○	○	○
Working Distance	76mm		●	●	●	●
Illumination	No Light		●
	Epi-illumination 12V/ 10W			●	●	●
	Diascopic Illumination 12V/ 10W				●	●

Note：●Standard Outfit，○Optional
