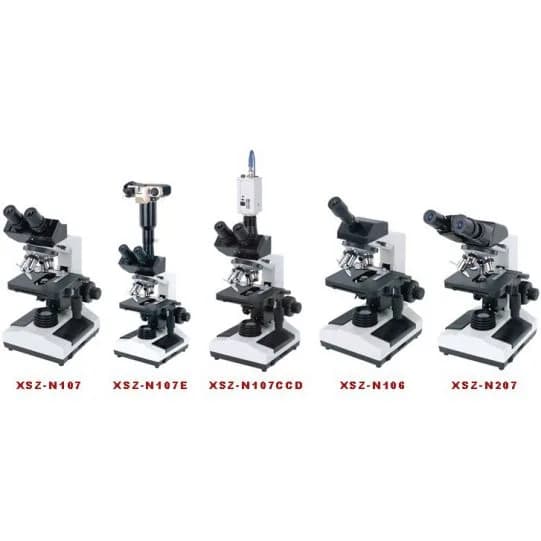

Optek Nowel XSZ-N107 Series

Specification：

N106

N107

N207

N107E

N107CCD

Viewing Head

Monocular Head Inclined at 45°, 360° Rotatable

●

Sliding Binocular Head Inclined at 45°, 360° Rotatable; Anti-mould

●

Compensation Free Binocular Head Inclined at 30°, 360° Rotatable; Anti-mould

●

Trinocualr Head for Photography

●

Trinocular Head for Video Camera      (C Mount)

●

Eyepiece

Wide Field Eyepiece WF10×、P16 ×

●

●

●

●

●

Objective

Achromatic Objective 4×、10×、40×（S）、100×(S, Oil)

●

●

●

●

●

Nosepiece

Quadruple Nosepiece

●

●

●

●

●

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

●

●

●

●

●

Focusing

Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm

●

●

●

●

●

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

●

●

●

●

●

Dark Field Condenser NA 0.9 (Dry)

○

○

○

○

○

Dark Field Condenser (Oil) NA 1.25-1.36

○

○

○

○

○

Illumination

Built-in Illumination, Halogen Lamp 6V/20W

●

●

●

●

●

Plan-concave Mirror

●

●

●

●

●

Kohler lighting fixtures

○

○

○

○

○
