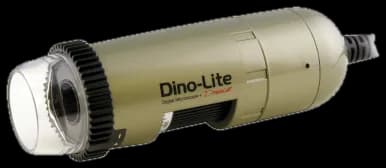

MEDL4HM trichoscope
Technical data
| Resolution | 1.3 MP |
|---|---|
| Magnification | 10x–70x, 200x |
| Interface | USB 2.0 |
| Light | White |
| Polarizer | Yes |
| Light | White |
| Number of LEDs | 8 |
| LED switching | Yes |
| Infrared filter | IR cut-filter >650 nm |
| Diffuser available | No |
| Emission filter | - |
| Polarisation | Yes, linear |
| Magnification | 10-70x, 200x |
| Lens type | Glass with anti-reflective coating |
| Sensor | CMOS |
| Maximum frame rate | 30 fps |
| Interface | USB 2.0 |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (macOS) | JPEG, PNG |
| Supported video formats (macOS) | MOV |
| Standardy obrazowania | DirectShow, UVC |
| Housing material | Plastic housing |
| Magnification lock | Yes |
| Weight | 95 g |
| Special feature | No |
| Measurement | No |
| Calibration | No |
| MicroTouch sensor | Yes |
| Package contents | Microscope, carry pouch, software CD, ZT-Z-CC1 cap closure, user manual |
| Warranty | 2-year European warranty |
| Certificates | Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745 |
Description
Full description

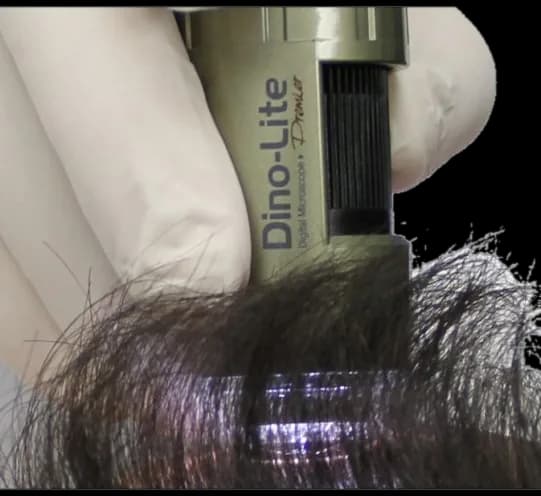

The Dino-Lite TrichoScope Polarizer (MEDL4HM) is an excellent instrument for examining the scalp and analysing hair — investigating the causes of hair loss, for example. At magnifications up to 200x a single hair can be examined in fine detail. The built-in polarising filter cuts the harsh glare off scalp and hair.
|
Illumination |
|
|
Light |
White |
|
Number of LEDs |
8 |
|
LED switching |
Yes |
|
Infrared filter |
IR cut filter > 650 nm |
|
Diffuser available |
No |
|
Emission filter |
- |
|
Polarisation |
Yes, linear |
|
Optics |
|
|
Magnification |
10–70x, 200x |
|
Lens type |
Glass with an anti-reflective coating |
|
Sensor |
|
|
Sensor |
CMOS |
|
Resolution |
1.3 megapixel (1280 × 1024) |
|
Maximum frame rate |
30 fps |
|
Compatibility |
|
|
Interface |
USB 2.0 |
|
Operating system |
Windows 7, 8, 10 & 11; macOS 10.9 and later |
|
Software |
DinoCapture 2.0 (Windows), DinoXcope (macOS) |
|
Supported image formats (Windows) |
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
|
Supported video formats (Windows) |
WMV, FLV, SWF |
|
Supported image formats (macOS) |
JPEG, PNG |
|
Supported video formats (macOS) |
MOV |
|
Imaging standards |
DirectShow, UVC |
|
Housing |
|
|
Housing material |
Plastic housing |
|
Magnification lock |
Yes |
|
Dimensions |
10.5 cm (L) × 3.2 cm (D) |
|
Weight |
95 g |
|
Cable length |
1.8 m |
|
Features |
|
|
Special feature |
No |
|
Measurement |
No |
|
Calibration |
No |
|
MicroTouch sensor |
Yes |
|
Information |
|
|
Package contents |
Microscope, carry pouch, software CD, ZT-Z-CC1 cap closure, user manual |
|
Warranty |
2-year European warranty |
|
Certificates |
Medical Device Class 1 — Medical Devices Regulation (EU) 2017/745 |
