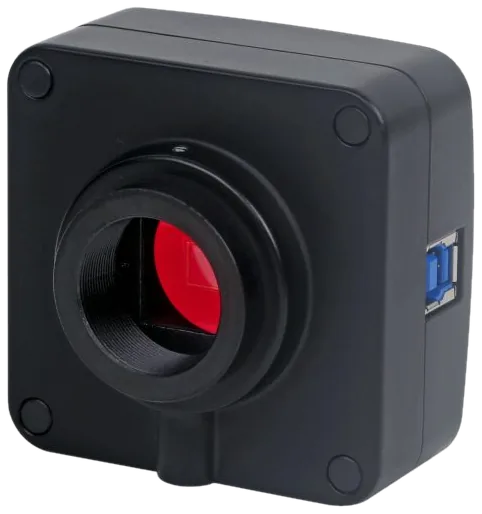

U3CMOS03100KPA
Technical data
| Sensor | AR0330(C) |
|---|---|
| Scanning | Progressive |
| Resolution | 2048 × 1536, 3.15 MP (3,145,728 pixels) |
| Sensor size | 1/2" (4.505x3.38) |
| Dynamic range (DR) | 61dB |
| A/D converter | 10-bit Parallel, 8-bit R.G.B to PC |
| S/N gain | 43dB |
| Spectral range | 380 -650nm (with IR-filter) |
| Binning | 1 x 1, 2 x 2 |
| Exposure | Electronic Rolling Snap (ERS), 0.1 ms–2000 ms, ROI automatic & manual |
| Colour rendering technique | Ultra Fine TM Color Engine |
| White balance | Automatic / manual |
| Capture / control via API | Native C/C++, .Net/C#, DirectShow, Twain, LabView |
| Capture type | Still images and video |
| Interface / power | USB3.0 |
| Software | ToupCam PL |
| Mount | C-Mount |
| Drivers | ToupView — Windows (all x86 and x64 editions), macOS, Linux |
Description
Scanning: Progressive
Resolution: 2048 × 1536 3.15 MP (3,145,728 pixels)
Sensor size: 1/2" (4.505 × 3.38)
Pixel size: 2.2 × 2.2µm
Sensitivity: 1.0 V/lux-sec (550 nm)
Dynamic range (DR): 61 dB
A/D converter: 10-bit parallel, 8-bit R.G.B to PC
S/N gain: 43 dB
Spectral range: 380–650 nm (with IR filter)
FPS: 27.3 @ 2048 × 1534, 53.3 @ 1024 × 770
Binning: 1 × 1, 2 × 2
Exposure: Electronic Rolling Snap (ERS),0.1 ms – 2000 ms, ROI automatic & manual
Colour rendering technique: Ultra FineTM Color Engine
White balance: Automatic / manual
Capture / control via API: Native C/C++, .NET/C#, DirectShow, Twain, LabVIEW
Capture type: Still images and video
Interface / power: USB 3.0
Software: ToupCam PL
Mount: C-Mount
Drivers: ToupView — Windows (all x86 and x64 editions), macOS, Linux
