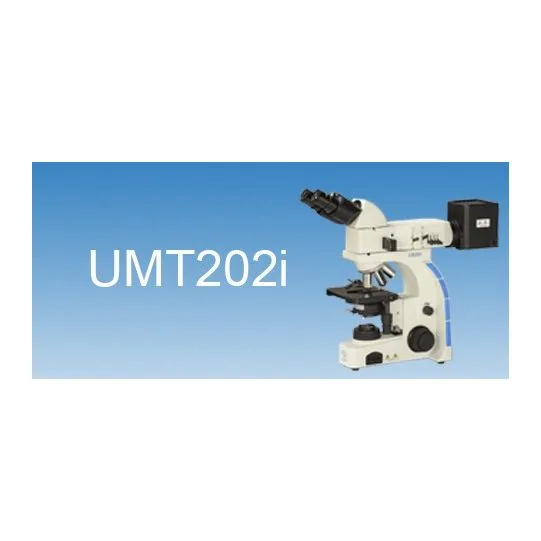

UOP UMT202i

Order No.

Specification

UMT202i

UMT200

Microscope Frame

●

MS2

Binocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, diopter adjustable

●

MS2A

Binocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, diopter adjustable

○

E1020PA

10X20mm Eyepieces

●●

E1020RA

10X20mm Reticule Eyepiece

●

WM-P5A

Infinity Long WD Plan Achromatic Objective 5X

○

WM-L10A

Infinity Long WD Plan Achromatic Objective 10X

●

WM-L20A

Infinity Long WD Plan Achromatic Objective 20X(S)

●

WM-P50A

Infinity Long WD Plan Achromatic Objective 50X(S)

●

WM-P80B

Infinity Long WD Plan Achromatic Objective 80X(S)

●

WM-P100A

Infinity Plan Achromatic Objective 100X(S)/(Oil)

○

JG2C

Abbe Condenser

●

JG11

Darkfield Condenser(Oil)

○

JG30A

Swing-Out Condenser

○

JG10

Darkfield Condenser(Dry)

○

DX10A

12V100W Halogen Lamp House

●

DYX2

12V50W Power Supply Unit

●

DYX4

12V100W Power Supply Unit

○

JX2

Reflected Illuminator(Single Module)

●

JX3

Reflected Illuminator(Multiple Module)

○

ZT2

Mechanical Stage, Size: 156mmX138mm, Range: 76x54mm

●

ZT2B

Mechanical Stage, Size: 185mmX177mm, Range: 75x50mm

○

ZQ480

Quadruple, Revolving Nosepiece

○

ZQ580

Quintuple, Revolving Nosepiece

●

KL3A

Kohler Illuminator(with Field Diaphragm)

●

DQ2

Electrics for 6V20W Halogen

●

DQ2A

Electrics for 6V30W Halogen

○

LA5-0011

Blue Filter (φ38)

●

LU5-0011

Green Filter (φ38)

○

LH5-0011

Yellow Filter (φ38)

○

LB5-0011

Ground Grass (φ38)

○

PQ2A

Polarizer(Reflected)

●

PQ1A

Polarizer(Transmitted)

●

PY2

Analyzer

●

BZ-0022A

6V20W Osram Halogen Bulb

●

BZ-0023

250V/3.15A Φ5X20 Fuse

●●●

BZ-0022C

6V30W Osram Halogen Bulb

○

BZ-0022E

12V50W Osram Halogen Bulb

●

BZ-0023A

250V/5A Φ5X20 Fuse

●●●

BZ-0022G

12V100W Osram Halogen Bulb

○

OMMM

Metallurgical Micrometer(1/100mm)

○

“●” Mean Standard Configuration, “○” Mean Optional.
