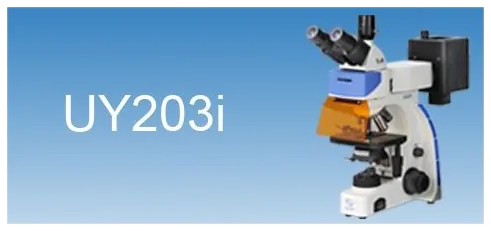

UOP UY203i

Order No.

Specification

UY203i

UB200

Microscope Frame

●

MT2B

Trinocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, diopter adjustable(1/100)

○

MT2

Trinocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, diopter adjustable(20/80)

●

MT2A

Trinocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, diopter adjustable(20/80)

○

E1020PA

10X20mm Eyepieces

●●

E1022PC

10X22mm Eyepieces

○○

E1613PB

16X13mm Eyepieces

○○

E1020RA

10X20mm Reticule Eyepiece

○

WB-P2A

Infinity Plan Achromatic Objective 2X(Used with Swing-out Condenser)

○

WB-P4C

Infinity Plan Achromatic Objective 4X

●

WB-P10C

Infinity Plan Achromatic Objective 10X

●

WB-P20C

Infinity Plan Achromatic Objective 20X(S)

○

WB-P40C

Infinity Plan Achromatic Objective 40X(S)

●

WB-P60C

Infinity Plan Achromatic Objective 60X(S)

○

WB-P100C

Infinity Plan Achromatic Objective 100X(S)/(Oil)

●

JG2C

Abbe Condenser

●

JG30A

Swing-Out Condenser

○

DX20A

100W Mercury Lamp House

●

DYX3

Power Supply for 100W Mercury Lamp House100W

●

DQ2

Electrics for 6V20W Halogen

●

DQ2A

Electrics for 6V30W Halogen

○

YG2

Fluorescence Illuminator

●

YG2-2200

UV Shield

●

YGMKC-UV

UV Fluorescence Filter(C)

○

YGMKI-UV

UV Fluorescence Filter(I)

○

YGMKC-V

V Fluorescence Filter(C)

○

YGMKI-V

V Fluorescence Filter(I)

○

YGMKC-B

B Fluorescence Filter(C)

●

YGMKI-B

B Fluorescence Filter(I)

○

YGMKC-G

G Fluorescence Filter(C)

●

YGMKI-G

G Fluorescence Filter(I)

○

ZT2

Mechanical Stage, Size: 156mmX138mm, Range: 76x54mm

●

ZT2B

Mechanical Stage, Size: 185mmX177mm, Range: 75x50mm

○

ZQ480

Quadruple, Revolving Nosepiece

○

ZQ580

Quintuple, Revolving Nosepiece

●

KL3A

Kohler Illuminator(with Field Diaphragm)

●

SX2

0.5X C-Mount

●

SX3

1X C-Mount

○

SX4

0.25X C-Mount

○

LA5-0011

Blue Filter (φ38, No Blue Filter for LED)

●

LU5-0011

Green Filter (φ38)

○

LH5-0011

Yellow Filter (φ38)

○

LB5-0011

Ground Grass (φ38)

●

BZ-0022A

6V20W Osram Halogen Bulb

●

BZ-0022C

6V30W Osram Halogen Bulb

○

BZ-0023

250V/3.15A Φ5X20 Fuse

●●●

BZ-0022H

100W Mercury Lamp(Made in China)

●●

BZ-0022I

100W Osram Mercury Lamp

○

BZ-0023A

250V/5A Φ5X20 Fuse

●●●

BZ-0027

Immersion Oil

●

“●” Mean Standard Configuration, “○” Mean Optional.
