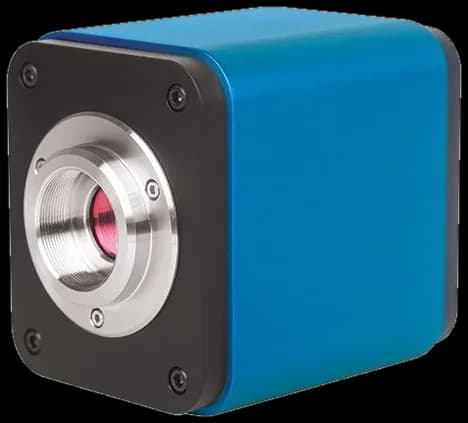

XCAM1080PHA HDMI
Technical data
| Sensor | Sony IMX236(C) |
|---|---|
| Sensor dimensions | 1/2.8"(5.5x3.4mm) |
| Resolution [FPS] | 60@1920x1080, 30@1920x1080 |
| Binning | 1 x 1 |
| Camera optical connector | C-Mount |
| UI control [HDMI] | Controlled with a mouse plugged into the camera's USB port |
| ToupView[USB] | Advanced PC software for controlling the camera (Polish-language interface) |
| Dimensions | 78x70x92mm (Widht x Depth x Height) |
| Weight | 0,47 kg |
Description
Full description
Sensor: Sony IMX236(C)
Sensor dimensions: 1/2.8" (5.5 × 3.4 mm)
Pixel size: 2.8 × 2.8 µm
Resolution [FPS]: 60 @ 1920 × 1080, 30 @ 1920 × 1080
Binning: 1 × 1
Exposure time: 0.4 ms – 999 ms
Camera optical connector: C-Mount

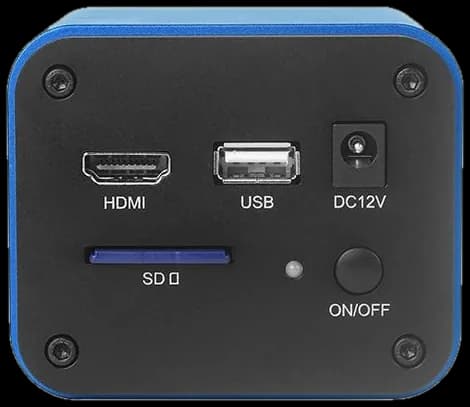

Inputs / outputs / buttons:
* USB input (for a mouse)
* HDMI output
* 12 V power socket
* SD card reader
* on/off button
* LED power indicator
Features:
UI control [HDMI]: operated with a mouse plugged into the camera's USB port
* exposure
* gain
* white balance
* colour correction
* sharpness correction
* noise correction
On-screen tools [HDMI]:
* zoom
* mirror image
* comparison
* freeze
* crosshair scale
* a browser for the folder of video clips and screen captures
ToupView [USB]: advanced PC software for controlling the camera, with a Polish interface
* operating system Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 (32 & 64 bit), Mac OS X, Linux
Dimensions: 78 × 70 × 92 mm (width × depth × height)
Weight: 0.47 kg
