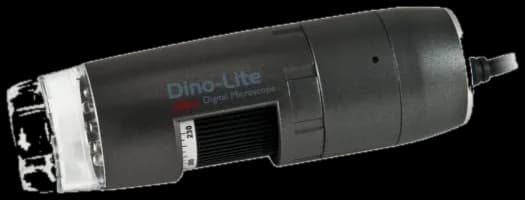

Dino-Lite - AM4115T Edge
Technical data
| Resolution | 1.3 MP |
|---|---|
| Magnification | 20x–220x |
| Measurement | Yes |
| » Also available | AM4115ZT — Edge with polariser |
Description
Full description
Dino-Lite Edge models give excellent image quality and a great deal of flexibility, thanks to a well-designed set of interchangeable caps. Several cap types come with the microscope, which makes the Edge a fitting tool across a range of professional work.
Additional information
-
Details
- Dino-Lite range:
Dino-Lite Edge
-
Illumination
- Lighting type:
White LED
- Number of LEDs:
8
- LED on/off switchable:
Yes
- Infrared filter:
IR cut filter > 650 nm
- Diffuser:
Yes (N3C-D included)
- Emission filter:
No
- Polariser:
No
-
Optics
- Magnification:
20–220x
- Macro zoom:
No
- Working distance:
Standard
- Lens type:
Glass with an anti-reflective coating
-
Sensor
- Sensor type:
CMOS
- Resolution:
1.3 megapixel (1280 × 1024)
- Maximum frame rate:
30 fps
-
Compatibility
- USB type:
USB 2.0
- Operating system:
Windows XP, Vista, 7 & 8; macOS 10.4 and later
- Included software:
DinoCapture 2.0 (Windows), DinoXcope (macOS)
- Supported image formats (Windows):
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows):
WMV, FLV, SWF
- Supported image formats (macOS):
JPEG, PNG
- Supported video formats (macOS):
MOV
- Imaging standard:
DirectShow, UVC
-
Housing
- Material:
Composite / plastic
- Magnification lock:
Yes
- Dimensions:
10.5 cm (L) × 3.2 cm (⌀)
- Weight:
105 g
- Cable length:
1.8 m
-
Features
- Special features:
No
- Measurement:
Yes
- Calibration:
Yes
- MicroTouch sensor:
Yes
- ESD:
No
-
Information
- The package contains:
Microscope, case, software CD, calibration target, manual, N3C-O open cap, N3C-C closed cap, N3C-D diffuser cap, N3C extension cap, N3C-L long cap, N3C-S side-light cap - Certificates:
CE, FCC, RoHS
Magnification Working distance 1 Working distance 2* Field of view (x) Field of view (y) Depth of field The values listed may vary slightly * Without the front cap Unit = mm 20 52.7 60.2 19.5 15.6 2.5 30 26.0 33.5 13.0 10.4 1.8 40 13.4 20.9 9.8 7.8 1.5 50 6.4 13.9 7.8 6.3 - 60 2.2 9.7 6.5 5.2 - 70 - 7.1 5.6 4.5 1.0 80 - 5.5 4.9 3.9 - 90 - 4.5 4.3 3.5 - 100 - 4.1 3.9 3.1 - 110 - 4.0 3.6 2.8 - 120 - 4.1 3.3 2.6 - 130 - 4.5 3.0 2.4 - 140 - 5.0 2.8 2.2 - 150 - 5.6 2.6 2.1 - 160 - 6.3 2.4 2.0 - 170 - 7.1 2.3 1.8 - 180 - 8.0 2.2 1.7 - 190 - 8.9 2.1 1.6 - 200 - 9.9 2.0 1.6 - 210 - 10.9 1.9 1.5 - 220 - 11.9 1.8 1.4 0.1
