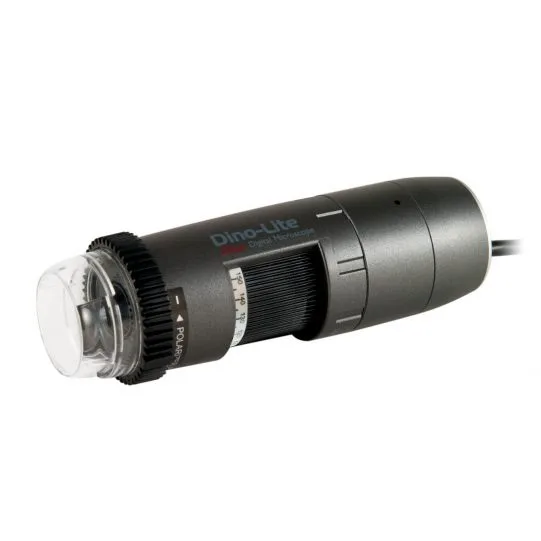

Dino-Lite - AM4815ZTL EDGE

Additional Info

• Details

• Dino-Lite range:
  Dino-Lite Long Working Distance

• Lighting

• Light/ LED type:
  White
• Number of LEDs:
  8
• LED on/off switchable:
  Yes
• Infrared filter:
  IR cut-filter >650 nm
• Diffuser available:
  Yes (N3C-D included)
• Emission filter:
  No
• Polarizer:
  Yes, linear

• Optics

• Magnification:
  10-140x
• Macro zoom:
  No
• Working distance:
  Long
• Lens type:
  Glass with anti-reflection coating

• Sensor

• Sensor type:
  CMOS
• Resolution:
  1.3 Megapixel (1280x1024)
• Maximum frame rate:
  30 fps

• Compatibility

• Interface:
  USB 2.0
• Operating system:
  Windows XP, Vista, 7 & 8
• Included software:
  DinoCapture 2.0 (Windows)
• Supported image formats (Windows):
  BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows):
  WMV, FLV, SWF
• Supported image formats (MacOS):
  -
• Supported video formats (MacOS):
  -
• Imaging standards:
  DirectShow, UVC

• Housing

• Housing material:
  Composite/ plastic housing
• Magnification lock:
  Yes
• Dimensions:
  10.5cm (L) x 3.2cm (D)
• Weight:
  105g
• Cable length:
  1.8m

• Features

• Special feature:
  Ext. Dynamic Range (EDR), Ext. Depth of Field (EDOF)
• Measurement:
  Yes
• Calibration:
  Yes
• Microtouch sensor:
  Yes
• ESD safe:
  No

• Information

• Package contents:

  Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap

• Regulatory approval:
  CE, FCC, ROHS
• Working distance/ field of view/ depth of field:



  Magnification Rate	Working Distance*	Field of View(x)	Field of View(y)	Depth of Field
  Listed values may differ slightly	* Without front cap			Unit = mm
  10	234.5	39.0	31.2	12
  20	112.5	19.5	15.6	4.5
  30	72.5	13.0	10.4	3.1
  40	54.5	9.8	7.8	1.8
  50	43.5	7.8	6.2	1.2
  60	37.5	6.5	5.2	0.9
  70	33.7	5.6	4.5	0.6
  80	31.3	4.9	3.9	0.5
  90	29.9	4.3	3.5	0.37
  100	29.2	3.9	3.1	0.28
  110	29.1	3.5	2.8	0.22
  120	29.3	3.3	2.6	0.17
  130	29.8	3.0	2.4	0.12
  140	30.5	2.8	2.2	0.09
