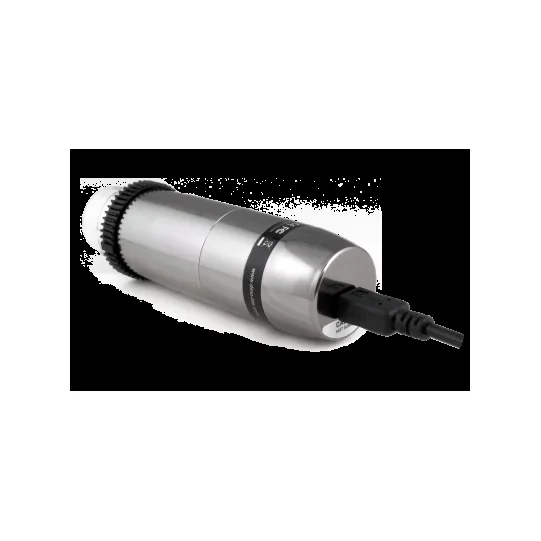

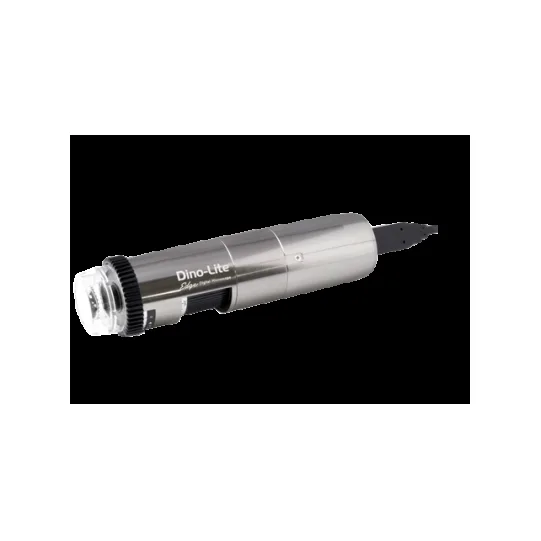

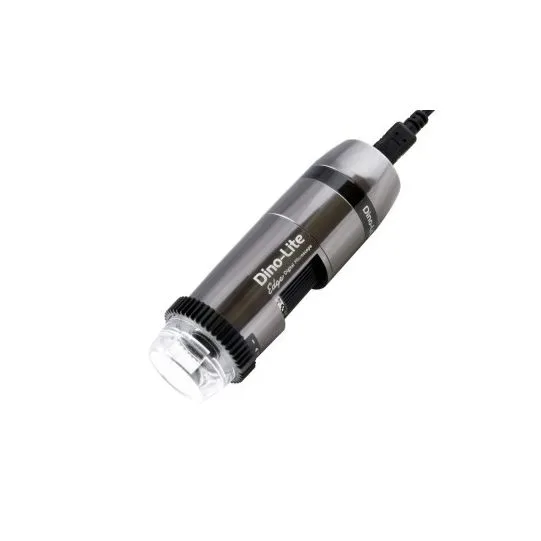

DINO-LITE AM8117MZT EDGE PLUS
Technical data
| Resolution | 8 MP |
|---|---|
| Magnification | 10x–220x |
| Interface | USB 2.0 |
| Light | White |
| Polarizer | Yes |
| Flexible LED control (FLC) | Yes |
| Measurement | Yes |
| Detachable front cap | Yes |
| Metal housing | Yes |
Description
Full description
Podnosząc jakość obrazu na wyższy poziom, cyfrowy mikroskop AM8117MZT o rozdzielczości 8 megapikseli oferuje wysoką rozdzielczość i wierność kolorów, zapewniając naturalne i szczegółowe wrażenia z obrazowania. AM8117MZT zawiera polaryzator do redukcji niechcianych odbić oraz eFLC do maksymalnej regulacji oświetlenia.
Główne cechy AM8117MZT to:
• 8 megapikseli
• Wysoka rozdzielczość optyczna
• Ulepszona regulacja elastycznego LED (eFLC)
• Polaryzator regulowany
• Wytrzymała obudowa metalowa
• Powiększenie od 10x do 220x
| MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD |
|
10 |
142.6 |
60.69 |
34.14 |
26.15 |
|
20 |
59.8 |
30.35 |
17.07 |
7.05 |
|
30 |
33.1 |
20.23 |
11.38 |
3.36 |
|
40 |
20.5 |
15.17 |
8.53 |
2.02 |
|
50 |
13.4 |
12.14 |
6.83 |
1.38 |
|
60 |
9.2 |
10.11 |
5.69 |
1.01 |
|
70 |
6.7 |
8.67 |
4.88 |
0.79 |
|
80 |
5.1 |
7.59 |
4.27 |
0.64 |
|
90 |
4.1 |
6.74 |
3.79 |
0.53 |
|
100 |
3.7 |
6.07 |
3.41 |
0.45 |
|
110 |
3.6 |
5.52 |
3.10 |
0.39 |
|
120 |
3.7 |
5.06 |
2.85 |
0.34 |
|
130 |
4.1 |
4.67 |
2.63 |
0.30 |
|
140 |
4.5 |
4.34 |
2.44 |
0.27 |
|
150 |
5.2 |
4.05 |
2.28 |
0.25 |
|
160 |
5.9 |
3.79 |
2.13 |
0.22 |
|
170 |
6.7 |
3.57 |
2.01 |
0.21 |
|
180 |
7.5 |
3.37 |
1.90 |
0.19 |
|
190 |
8.5 |
3.20 |
1.80 |
0.18 |
|
200 |
9.4 |
3.03 |
1.71 |
0.16 |
|
210 |
10.5 |
2.89 |
1.63 |
0.15 |
|
220 |
11.5 |
2.76 |
1.55 |
0.14 |
| Listed values may differ slightly | * Without front cap | Unit = mm | ||
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 8 |
| Optics | |
| Magnification | 10x ~ 220x |
| Working distance | 142.6 ~ 11.5 mm |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 8 Megapixel (3840 x 2160) |
| Maximum frame rate | 10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 10/11 |
| Supported image formats (Windows) | BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Housing | |
| Housing material | Metal housing |
| Dimensions | 130 mm (H) x 33 mm (D) |
| Weight | 120 g |
| Features | |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| Information | |
| Package contents | N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) |
| Warranty information | 2 years European warranty |
| Regulatory approval: | CE, FCC, ROHS |
