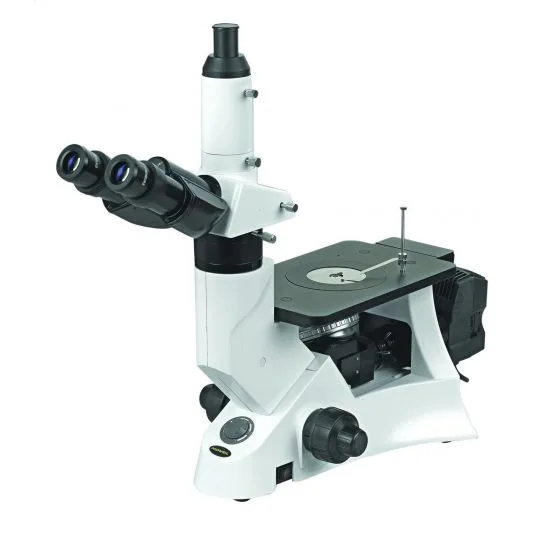

OPMT NIM-100
Description
Full description
| Infinitive Optical System Providing Excellent Optical Functions. With the stable stand structure、advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy.
|
|
|
|
NIM-100 |
|
Viewing Head |
Trinocular head inclined at 30°, interpupillary distance 48-75mm |
● |
|
Eyepiece |
High-point , extra wide field eyepiece EW10×/ 20 |
● |
|
Infinite Plan Achromatic Objective |
4×/ 0.1 |
● |
|
5×/ 0.12 |
○ |
|
|
10×/ 0.25 |
● |
|
|
20×/ 0.40 |
● |
|
|
40×/ 0.60 |
● |
|
|
50×/ 0.75 |
○ |
|
| 80×/ 0.90 |
○ |
|
| 100×/ 0.80 |
○ |
|
|
Nosepiece |
Quintuple nosepiece |
● |
|
Stage |
Plain stage |
● |
|
Attachable mechanical stage, X-Y coaxial control, moving range 120×78mm |
○ |
|
|
Double layer mechanical stage 226×178mm,Moving range 50×50mm |
○ |
|
|
Auxiliary stage 239x250mm |
○ |
|
|
Focusing |
Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation |
● |
|
Kohler |
Halogen lamp 6V/ 30W |
● |
|
Filter |
Blue, Yellow, Green and Ground Glass |
● |
|
Polarization Attachment |
|
● |
|
Photo Attachment |
|
○ |
|
Video Adapter |
Video adapter with C mount |
○ |
|
Note: ● Standard Outfit, ○ Optional |
