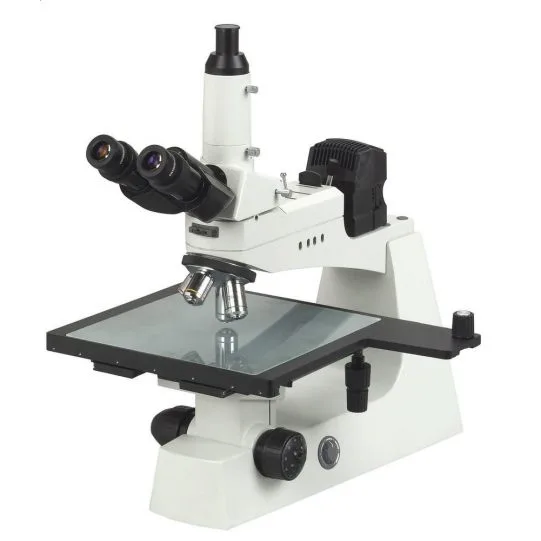

OPMT NJC-160
Description
Full description
| · | Big Stage with Extra Large Moving Range 250×250mm. |
| · | It is widely used in IT Industry for Large Area Integrate Circuit, Wafer Observation and Inspection. |
| · | Excellent Optical Quality with Infinite Optical System and LWD High Magnification Objective(40X/ WD3.7mm). |
| · | Stage Speedy Movement by Hand to Get Observation Point Immediately. |
| · | Comfortable and Enjoyable Operation with Low and Pre Position Control Knob. |
| Features: |
 |
Suitable for different Specimen Observation with Polarization Set |
 |
Easy, Safe and Reliable Lamp Replacement Device |
 |
Available for Measuring with digital Camera and software |
|
Specification： |
|
NJC-160A |
NJC-160B |
|||
|
Viewing Head |
Siedentopf type trinocular head |
● |
● |
|
|
Eyepiece |
Extra Wide Field Eyepiece EW10X/ 22 |
● |
● |
|
|
Objective |
Infinitive |
4×/0.1/∞/- WD17.8mm |
● |
|
|
5×/0.12/∞/- WD15.8mm |
○ |
● |
||
|
10×/0.25/∞/- WD10mm |
● |
|
||
|
10×/0.25/∞/-(BF/DF) WD10mm |
|
● |
||
|
20×/0.4/∞/0 WD5.8mm |
● |
|
||
|
20×/0.4/∞/0(BF/DF) WD4.30mm |
|
● |
||
|
40×/0.6/∞/0 WD2.9mm |
● |
|
||
|
50×/0.75/∞/0 WD0.32mm |
○ |
● |
||
|
100×/0.8/∞/0 WD0.2mm |
○ |
● |
||
|
Nosepiece |
Quadruple Nosepiece |
● |
|
|
|
Quintuple Nosepiece |
|
● |
||
|
Stage |
Stage 300×268mm/ 250×250mm |
● |
● |
|
|
Focusing |
Coaxial Coarse & Fine Adjustment, Range24mm |
● |
● |
|
|
Illumination |
6V/ 20W Halogen Lamp, Brightness Adjustable |
● |
|
|
|
24V/ 100W Halogen Lamp, Brightness Adjustable |
|
● |
||
|
Polarization Set |
Analyzer and Polarizer |
○ |
○ |
|
|
Filter |
Blue, Green, Yellow and Ground Glass |
● |
● |
|
|
Photo Attachment |
|
○ |
○ |
|
|
Video Adapter |
C Mount |
○ |
○ |
|
|
Camera System |
|
○ |
○ |
|
|
Software |
Image Processing Software |
○ |
○ |
|
|
Note: ● Standard Outfit, ○ Optional |
