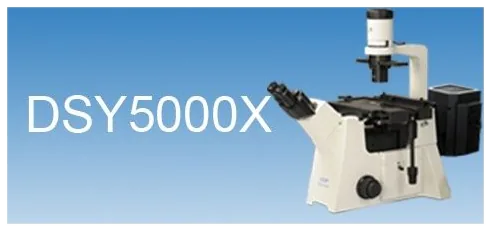

UOP DSY5000X

Order No.

Specification

DSY5000X

DSY5000

Microscope Frame

●

MS1

Binocular Tube, Interpupillary distance 52-75mm,45°inclined,diopter adjustable.

●

MS1A

Binocular Tube, Interpupillary distance 48-75mm,45°inclined,diopter adjustable.

○

E1020PA

WF10X/20mm Plan Eyepiece, High eye-point up to 21mm

●●

E1022PC

WF10X/22mm Plan Eyepiece, High eye-point up to 21mm

○○

E1020RA

WF10X/20mm Reticule Eyepiece, High eye-point up to 21mm

○

DZ3

Centering Telescope

●

E1613PB

16X/13mm Eyepiece

○○

WB-P4C

4X Infinity Long WD Plan Objectives

○

WB-L10B

10X Infinity Long WD Plan Objectives

●

WB-L20B

20 X Infinity Long WD Plan Objectives

●

WB-L40B

40X Infinity Long WD Plan Objectives

●

WB-L60B

60 X Infinity Long WD Plan Objectives

○

WB-LPHp10B

10X Infinity Plan Phase-Contrast Positive Objectives

○

WB-LPHp20B

20X Infinity Plan Phase-Contrast Positive Objectives

●

WB-LPHp40B

40X Infinity Plan Phase-Contrast Positive Objectives

○

WB-LPHn10B

10X Infinity Plan Phase-Contrast Negative Objectives

○

WB-LPHn20B

20X Infinity Plan Phase-Contrast Negative Objectives

○

WB-LPHn40B

40X Infinity Plan Phase-Contrast Negative Objectives

○

DLST1

Multi-functional Semi-reflector

●

YGMKC-UV

UV Fluorescence Filter(C)

○

YGMKI-UV

UV Fluorescence Filter(I)

○

YGMKC-V

V Fluorescence Filter(C)

○

YGMKI-V

V Fluorescence Filter(I)

○

YGMKC-B

B Fluorescence Filter(C)

●

YGMKI-B

B Fluorescence Filter(I)

○

YGMKC-G

G Fluorescence Filter(C)

●

YGMKI-G

G Fluorescence Filter(I)

○

ZT1

Fixed Stage, 240mmX260mm; movement range: 135mmx85mm; with low-positioned X/Y coaxial control knob.

●

ZT1-1000

Drop specimen holder(φ118)

●

1D-0022

Specimen holder(125X85)

○

1D-0021

Specimen holder(76X26, φ54)

●

ZT1A

Mechanical Stage, 350mmx208mm; movement range: 50mmx50mm; with low-positioned X/Y coaxial control knob.

○

ZQ580A

Quintuple Revolving Nosepiece

●

SGJ1A

Ultra long WD Condenser

●

PCB-LPHA

Phase-contrast Slider

●

SGJ1-3000

6V30W Halogen Lamp House

●

SGJ5-0023

Filter Holder

●

LA1-0011

Blue filter(φ34)

●

LU1-0011

Green filter(φ34)

●

LH1-0011

Yellow filter(φ34)

●

SX1

0.5X C Mount

●

SX5

0.25X C Mount

○

BZ-0022C

6V30W Osram Halogen Bulb

●

BZ-0022H

100W Mercury Lamp(China)

●●

BZ-0022I

100W Mercury Lamp(Osram)

○

DX20A

100W Mercury Lamp House

●

DYX3

100W Power Supply Unit

●

BZ-0023A

250V/5A Φ5X20 Fuse

●●●

DYX1

Electrics for 6V30W Halogen

●

BZ-0023

250V/3.15A Φ5X20 Fuse

●●●

“●” Mean Standard Configuration, “○” Mean Optional.
