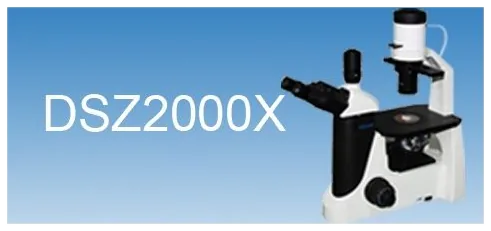

UOP DSZ2000X
Technical data
| Mechanical stage, 180 × 155 mm; movement range | 80mmx50mm; with low-positioned X/Y coaxial control knob. |
|---|
Description
Full description
|
Order No. |
Specification |
DSZ2000X |
|
DSZ2000 |
Microscope Frame |
● |
|
MS3 |
Binocular Tube, Interpupillary distance 52-75mm, 30°inclined diopter adjustable. |
○ |
|
MT3 |
Trinocular Tube, Interpupillary distance 52-75mm, 30°inclined diopter adjustable. |
● |
|
E1020PB |
WF10X/20mm Plan Eyepiece, High eye-point up to 21mm |
●● |
|
E1018RA |
WF10X/18mm Reticule Eyepiece, High eye-point up to 21mm |
○ |
|
DZ1 |
Centering Telescope |
● |
|
E1613PA |
16X/13mm Eyepiece |
○○ |
|
MS2 |
Binocular Tube, Interpupillary distance 52-75mm, 30°inclined diopter adjustable. (For WF10X/22mm eyepieces) |
○ |
|
MT2 |
Trinocular Tube, Interpupillary distance 52-75mm, 30°inclined diopter adjustable. (For WF10X/22mm eyepieces) |
○ |
|
E1022PC |
WF10X/22mm Plan Eyepiece, High eye-point up to 21mm |
○○ |
|
E1020RA |
WF10X/20mm Reticule Eyepiece, High eye-point up to 21mm |
○ |
|
DZ1 |
Centering Telescope |
○ |
|
E1613PA |
16X/13mm Eyepiece |
○○ |
|
WB-P4C |
4X Infinity Long WD Plan Objectives |
○ |
|
WB-L10B |
10X Infinity Long WD Plan Objectives |
● |
|
WB-L20B |
20 X Infinity Long WD Plan Objectives |
● |
|
WB-L40B |
40X Infinity Long WD Plan Objectives |
● |
|
WB-L60B |
60 X Infinity Long WD Plan Objectives |
○ |
|
WB-LPHp10B |
10X Infinity Plan Phase-Contrast Positive Objectives |
○ |
|
WB-LPHp20B |
20X Infinity Plan Phase-Contrast Positive Objectives |
● |
|
WB-LPHp40B |
40X Infinity Plan Phase-Contrast Positive Objectives |
○ |
|
WB-LPHn10B |
10X Infinity Plan Phase-Contrast Negative Objectives |
○ |
|
WB-LPHn20B |
20X Infinity Plan Phase-Contrast Negative Objectives |
○ |
|
WB-LPHn40B |
40X Infinity Plan Phase-Contrast Negative Objectives |
○ |
|
ZT5 |
Fixed Stage, 240mmX180mm |
○ |
|
ZT5-1000 |
Drop specimen holder(φ110) |
○ |
|
ZT5-2000 |
Specimen holder |
○ |
|
ZT5A |
Mechanical Stage, 180mmx155mm; movement range: 80mmx50mm; with low-positioned X/Y coaxial control knob. |
● |
|
ZT5-1000 |
Drop specimen holder(φ110) |
● |
|
ZT5-2000 |
Specimen holder |
● |
|
ZQ580A |
Quintuple Revolving Nosepiece |
● |
|
SGJ5 |
Ultra long WD Condenser |
● |
|
PCB-LPHA |
Phase-contrast Slide |
● |
|
SGJ1-3000 |
6V30W Halogen Lamp House |
● |
|
SGJ5-0023 |
Filter Holder |
● |
|
LA1-0011 |
Blue filter(φ34) |
● |
|
LU1-0011 |
Green filter(φ34) |
● |
|
LH1-0011 |
Yellow filter(φ34) |
● |
|
SX2 |
0.5X C-Mount |
○ |
|
SX3 |
1X C-Mount |
○ |
|
SX4 |
0.25X C-Mount |
○ |
|
BZ-0022C |
6V30W Osram Halogen Bulb |
● |
|
DQ5 |
Electrics for 6V30W Halogen |
● |
|
BZ-0023 |
250V/3.15A Φ5X20 Fuse |
●●● |
|
“●” Mean Standard Configuration, “○” Mean Optional. |
||
