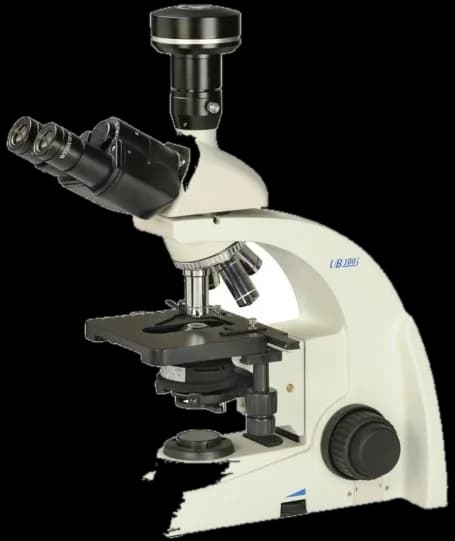

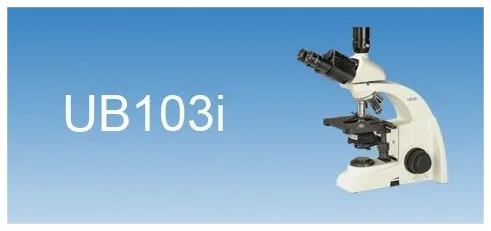

UOP UB103i
Technical data
| Mechanical stage, size | 142mmX135mm, Range: 76x52mm |
|---|
Description
Full description
|
Order No. |
Specification |
UB103i |
|
UB100 |
Microscope Frame |
● |
|
MT3 |
Trinocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, diopter adjustable |
● |
|
MT3A |
Trinocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, diopter adjustable |
○ |
|
MT3C |
Trinocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, diopter adjustable |
○ |
|
E1018PB |
10X18mm Eyepieces |
●● |
|
E1020PB |
10X20mm Eyepieces |
○○ |
|
E1613PA |
16X13mm Eyepieces |
○○ |
|
E1018GB |
10X18mm Eyepiece (Point) |
○ |
|
E1020GB |
10X20mm Eyepiece (Point) |
○ |
|
E1020RB |
10X20mm Reticule Eyepiece |
○ |
|
E1018RA |
10X18mm Reticule Eyepiece |
○ |
|
WB-X4C |
Infinity Achromatic Objective 4X |
● |
|
WB-X10C |
Infinity Achromatic Objective10X |
● |
|
WB-X40C |
Infinity Achromatic Objective40X(S) |
● |
|
WB-X100C |
Infinity Achromatic Objective100X(S)/(Oil) |
● |
|
WB-P4C |
Infinity Plan Achromatic Objective 4X |
○ |
|
WB-P10C |
Infinity Plan Achromatic Objective 10X |
○ |
|
WB-P20C |
Infinity Plan Achromatic Objective 20X(S) |
○ |
|
WB-P40C |
Infinity Plan Achromatic Objective 40X(S) |
○ |
|
WB-P60C |
Infinity Plan Achromatic Objective 60X(S) |
○ |
|
WB-P100C |
Infinity Plan Achromatic Objective 100X(S)/(Oil) |
○ |
|
JG2C |
Abbe Condenser |
● |
|
ZT3 |
Mechanical Stage, Size: 142mmX135mm, Range: 76x52mm |
● |
|
ZT2 |
Mechanical Stage, Size: 156mmX138mm, Range: 76x54mm |
○ |
|
ZQ470 |
Quadruple, Revolving Nosepiece |
● |
|
ZQ570 |
Quintuple, Revolving Nosepiece |
○ |
|
JZ3-1000 |
Kohler Illuminator(No Field Diaphragm) |
● |
|
DQ3 |
Electrics for 6V20W Halogen |
● |
|
DQLC1 |
Electrics for 3W LED(with Rechargeable Battery) |
○ |
|
DQL1 |
Electrics for 3W LED |
○ |
|
SX2 |
0.5X C-Mount |
○ |
|
SX3 |
1X C-Mount |
● |
|
SX4 |
0.25X C-Mount |
○ |
|
LA2-0011 |
Blue Filter (φ32, No Blue Filter for LED) |
● |
|
LU2-0011 |
Green Filter (φ32) |
○ |
|
LH2-0011 |
Yellow Filter (φ32) |
○ |
|
LB2-0011 |
Ground Grass (φ32) |
● |
|
PQ1A |
Polarizer |
○ |
|
PY1 |
Analyzer |
○ |
|
FG1 |
Reflected Mirror |
○ |
|
BZ-0022A |
6V20W Osram Halogen Bulb |
● |
|
BZ-0023 |
250V/3.15A Φ5X20 Fuse |
●●● |
|
DQL1A-1000 |
3W LED Bulb |
○ |
|
UDCH-5300 |
LED Rechargeable Battery |
○ |
|
BZ-0027 |
Immersion Oil |
● |
|
“●” Mean Standard Configuration, “○” Mean Optional. |
||
