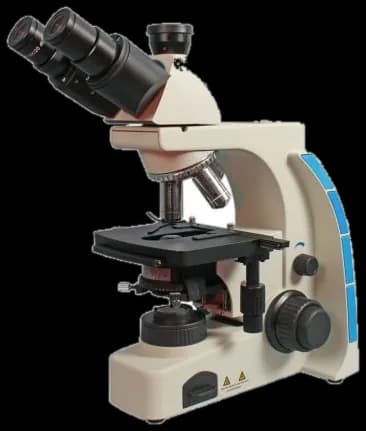

UOP UB203i
Technical data
| Optical system | UCIS — infinity-corrected optical system |
|---|---|
| Eyepiece | WF 10x/20mm |
| Nosepiece | Reversed, five sockets |
| Magnification | 40x - 1000x |
| Zoom | - |
| Working distance | - |
| Filter | Blue |
| Condenser | Abbe N.A. 1.25, graduated iris diaphragm, filter holder, height adjustment, slot for a PH slide |
| Focusing system | Low-set ergonomic coaxial coarse/fine focus knob on both sides, graduation 0.001 mm, travel 22 mm |
| Light source | 3 W LED, built-in power supply, 230 V mains |
| Microscopy method | - |
| Measurement | - |
| Dimensions | - |
| Housing | Durable and shock-resistant |
| Weight | 6 kg |
| Datasheet | LINK |
Description
Full description
Optical system: UCIS — infinity-corrected optical system
Head: Siedentopf trinocular, inclined 30°, rotates 360°, interpupillary distance 52–75 mm, left-hand dioptre adjustment ±5
Eyepiece: WF 10x/20 mm
[10x/22 mm optional]Objective (magnification / N.A. / W.D.):
Infinity plan achromat
Plan 4x/0.13/WD 12.31,
Plan 10x/0.30/WD 4.00,
Plan 20x/0.45/WD 1.24
Plan 40x/0.70/0.29 (S),
Plan 100x/1.25/WD 0.09 (S, O)
Nosepiece: reversed, five sockets
Magnification: 40x – 1000x
Zoom: -
Working distance: -
Stage: flat two-layer XY stage, 156 × 138 mm, with a vernier scale, travel 76 × 54 mm, upper stage position lock, and a holder that takes two slides at once
Filter: blue
Condenser: Abbe N.A. 1.25, graduated iris diaphragm, filter holder, height adjustment, and a slot for a PH slide
Focusing system: low-set ergonomic coaxial coarse/fine focus knob on both sides, graduation 0.001 mm, travel 22 mm
Light source: 3 W LED, built-in power supply, 230 V mains
Microscopy method: -
Measurement: -
Dimensions: -
Housing: durable and shock-resistant
Weight: 6 kg

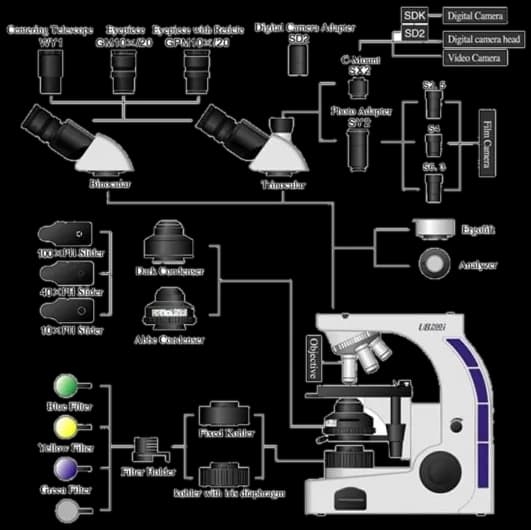

Optional accessories:
See the catalogue
Datasheet: LINK
