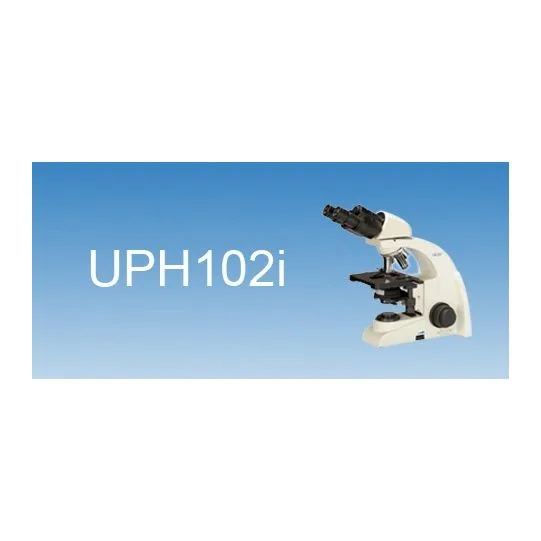

UOP UPH102i

Order No.

Specification

UPH102i

UB100

Microscope Frame

●

MS3

Binocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, diopter adjustable

●

MS3A

Binocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, diopter adjustable

○

E1018PB

10X18mm Eyepieces

●●

E1020PB

10X20mm Eyepieces

○○

E1613PA

16X13mm Eyepieces

○○

E1018GB

10X18mm Eyepiece (Point)

○

E1020GB

10X20mm Eyepiece (Point)

○

E1018RA

10X20mm Reticule Eyepiece

○

DZ1

Centering Telescope

○

WB-X4C

Infinity Achromatic Objective 4X

●

WB-X10C

Infinity Achromatic Objective10X

○

WB-X40C

Infinity Achromatic Objective40X(S)

○

WB-X100C

Infinity Achromatic Objective100X(S)/(Oil)

○

WB-XPHp10C

Infinity Achromatic Phase Contrast Objective(Positive) 10X

●

WB-XPHp40C

Infinity Achromatic Phase Contrast Objective(Positive) 40X(S)

●

WB-XPHp100C

Infinity Achromatic Phase Contrast Objective(Positive) 100X(S)/(Oil)

●

WB-XPHn10C

Infinity Achromatic Phase Contrast Objective(Negative) 10X

○

WB-XPHn40C

Infinity Achromatic Phase Contrast Objective(Negative) 40X(S)

○

WB-XPHn100C

Infinity Achromatic Phase Contrast Objective(Negative) 100X(S)/(Oil)

○

WB-PPHp10C

Infinity Plan Achromatic Phase Contrast Objective(Positive) 10X

○

WB-PPHp20C

Infinity Plan Achromatic Phase Contrast Objective(Positive) 20X(S)

○

WB-PPHp40C

Infinity Plan Achromatic Phase Contrast Objective(Positive) 40X(S)

○

WB-PPHp60C

Infinity Plan Achromatic Phase Contrast Objective(Positive) 60X(S)

○

WB-PPHp100C

Infinity Plan Achromatic Phase Contrast Objective(Positive) 100X(S)/(Oil)

○

WB-PPHn10C

Infinity Plan Achromatic Phase Contrast Objective(Negative) 10X

○

WB-PPHn20C

Infinity Plan Achromatic Phase Contrast Objective(Negative) 20X(S)

○

WB-PPHn40C

Infinity Plan Achromatic Phase Contrast Objective(Negative) 40X(S)

○

WB-PPHn60C

Infinity Plan Achromatic Phase Contrast Objective(Negative) 60X(S)

○

WB-PPHn100C

Infinity Plan Achromatic Phase Contrast Objective(Negative) 100X(S)/(Oil)

○

PCB-XPH10B

10X Phase Contrast Slider( For Ach.)

●

PCB-XPH40B

40X Phase Contrast Slider( For Ach.)

●

PCB-XPH100B

100XPhase Contrast Slider( For Ach.)

●

PCB-PPH10C

10X Phase Contrast Slider( For Plan)

○

PCB-PPH20C

20X Phase Contrast Slider( For Plan)

○

PCB-PPH40C/60C/100C

40X/60X/100X Phase Contrast Slider( For Plan)

○

JG2C

Abbe Condenser

●

ZT3

Mechanical Stage, Size: 142mmX135mm, Range: 76x52mm

●

ZT2

Mechanical Stage, Size:156mmX138mm, Range: 76x54mm

○

ZQ470

Quadruple, Revolving Nosepiece

●

ZQ570

Quintuple, Revolving Nosepiece

○

JZ3-1000

Kohler Illuminator(No Field Diaphragm)

●

DQ3

Electrics for 6V20W Halogen

●

DQLC1

Electrics for 3W LED(with Rechargeable Battery)

○

DQL1

Electrics for 3W LED

○

LA2-0011

Blue Filter (φ32, No Blue Filter for LED)

●

LU2-0011

Green Filter (φ32)

○

LH2-0011

Yellow Filter (φ32)

○

LB2-0011

Ground Grass (φ32)

○

BZ-0022A

6V20W Osram Halogen Bulb

●

BZ-0023

250V/3.15A Φ5X20 Fuse

●●●

DQL1A-1000

3W LED Bulb

○

UDCH-5300

LED Rechargeable Battery

○

BZ-0027

Immersion Oil

●

“●” Mean Standard Configuration, “○” Mean Optional.
