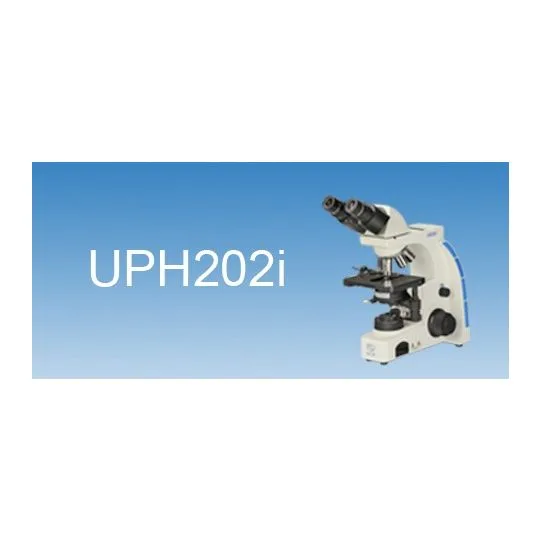

UOP UPH202i
Description
Full description
|
Order No. |
Specification |
UPH202i |
|
UB200 |
Microscope Frame |
● |
|
MS2 |
Binocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, diopter adjustable |
● |
|
MS2A |
Binocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, diopter adjustable |
○ |
|
E1020PA |
10X20mm Eyepieces |
●● |
|
E1022PC |
10X22mm Eyepieces |
○○ |
|
E1613PB |
16X13mm Eyepieces |
○○ |
|
E1020GA |
10X20mm Eyepiece (Point) |
○ |
|
E1022GC |
10X22mm Eyepiece (Point) |
○ |
|
E1020RA |
10X20mm Reticule Eyepiece |
○ |
|
DZ2 |
Centering Telescope |
● |
|
WB-P4C |
Infinity Plan Achromatic Objective 4X |
● |
|
WB-PPHp10C |
Infinity Plan Achromatic Phase Contrast Objective(Positive) 10X |
● |
|
WB-PPHp20C |
Infinity Plan Achromatic Phase Contrast Objective(Positive) 20X |
○ |
|
WB-PPHp40C |
Infinity Plan Achromatic Phase Contrast Objective(Positive) 40X(S) |
● |
|
WB-PPHp60C |
Infinity Plan Achromatic Phase Contrast Objective(Positive) 60X(S) |
○ |
|
WB-PPHp100C |
Infinity Plan Achromatic Phase Contrast Objective(Positive) 100X(S)/(油) |
● |
|
WB-PPHn10C |
Infinity Plan Achromatic Phase Contrast Objective(Negative) 10X |
○ |
|
WB-PPHn20C |
Infinity Plan Achromatic Phase Contrast Objective(Negative) 20X |
○ |
|
WB-PPHn40C |
Infinity Plan Achromatic Phase Contrast Objective(Negative) 40X(S) |
○ |
|
WB-PPHn60C |
Infinity Plan Achromatic Phase Contrast Objective(Negative) 60X(S) |
○ |
|
WB-PPHn100C |
Infinity Plan Achromatic Phase Contrast Objective(Negative) 100X(S)/(油) |
○ |
|
JG40B |
Multi-Purpose Turrent Condenser(for Brightfield, Phase Contrast) |
● |
|
JG41A |
Multi-Purpose Turrent Condenser(for Brightfield, Phase Contrast, Darkfield) |
○ |
|
ZT2 |
Mechanical Stage, Size: 156mmX138mm, Range: 76x54mm |
● |
|
ZT2B |
Mechanical Stage, Size: 185mmX177mm, Range: 75x50mm |
○ |
|
ZQ480 |
Quadruple, Revolving Nosepiece |
● |
|
ZQ580 |
Quintuple, Revolving Nosepiece |
○ |
|
KL3A |
Kohler Illuminator(with Field Diaphragm) |
● |
|
DQ2 |
Electrics for 6V20W Halogen |
● |
|
DQ2A |
Electrics for 6V30W Halogen |
○ |
|
DQLC2 |
Electrics for 3W LED(with Rechargeable Battery) |
○ |
|
DQL2B |
Electrics for 3W LED |
○ |
|
LA5-0011 |
Blue Filter (φ38, No Blue Filter for LED) |
● |
|
LU5-0011 |
Green Filter (φ38) |
○ |
|
LH5-0011 |
Yellow Filter (φ38) |
○ |
|
LB5-0011 |
Ground Grass (φ38) |
○ |
|
BZ-0022A |
6V20W Osram Halogen Bulb |
● |
|
BZ-0023 |
250V/3.15A Φ5X20 Fuse |
●●● |
|
BZ-0022C |
6V30W Osram Halogen Bulb |
○ |
|
DQL2B-2000 |
Lamp Socket with 3W LED Bulb |
○ |
|
UDCH-5300 |
LED Rechargeable Battery |
○ |
|
BZ-0027 |
Immersion Oil |
● |
|
“●” Mean Standard Configuration, “○” Mean Optional. |
||
